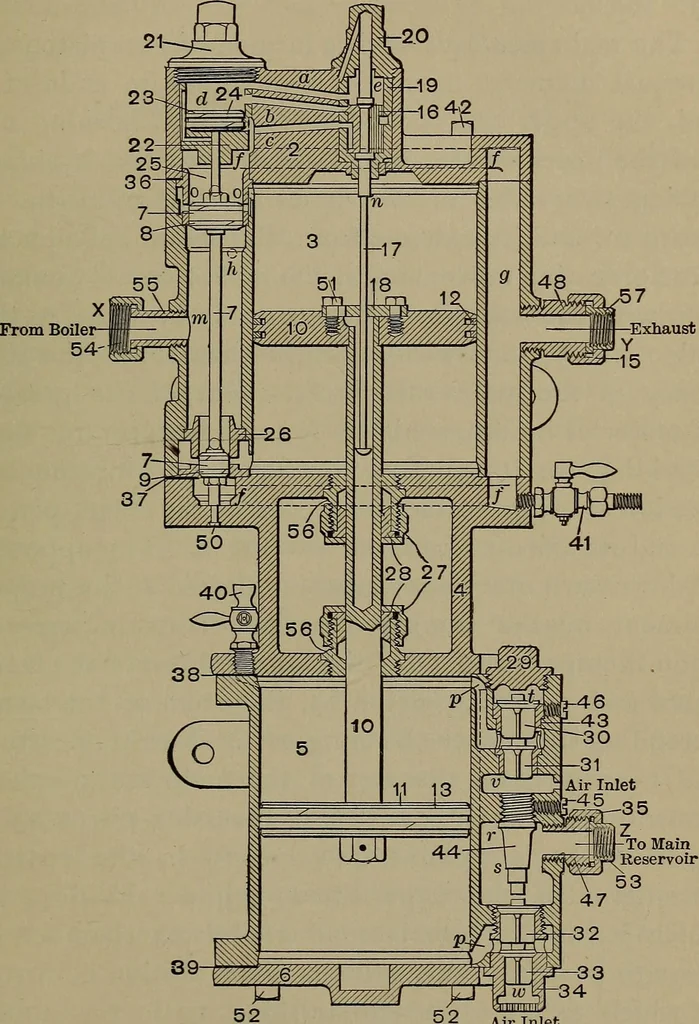

-ably arranged valves in the walls of the steam-cylinder3 and its upper head 2, to which further reference willbe made, admit steam alternately above and below thesteam-piston 10, forcing it upward and downward,giving a similar movement to the air-piston, while airfrom the outside atmosphere is… … Air Inlet Fig. 19.—Eight-inch Air-Pump. 256 LOCOMOTIVE ENGINE RUNNING. reservoir through pipes connecting at the union swivel 53- The main steam-valve 7 is formed of two pistons ofunequal diameter mounted upon opposite ends of arod, the upper one occupying cylindrical bushing 25,and the lower one…
