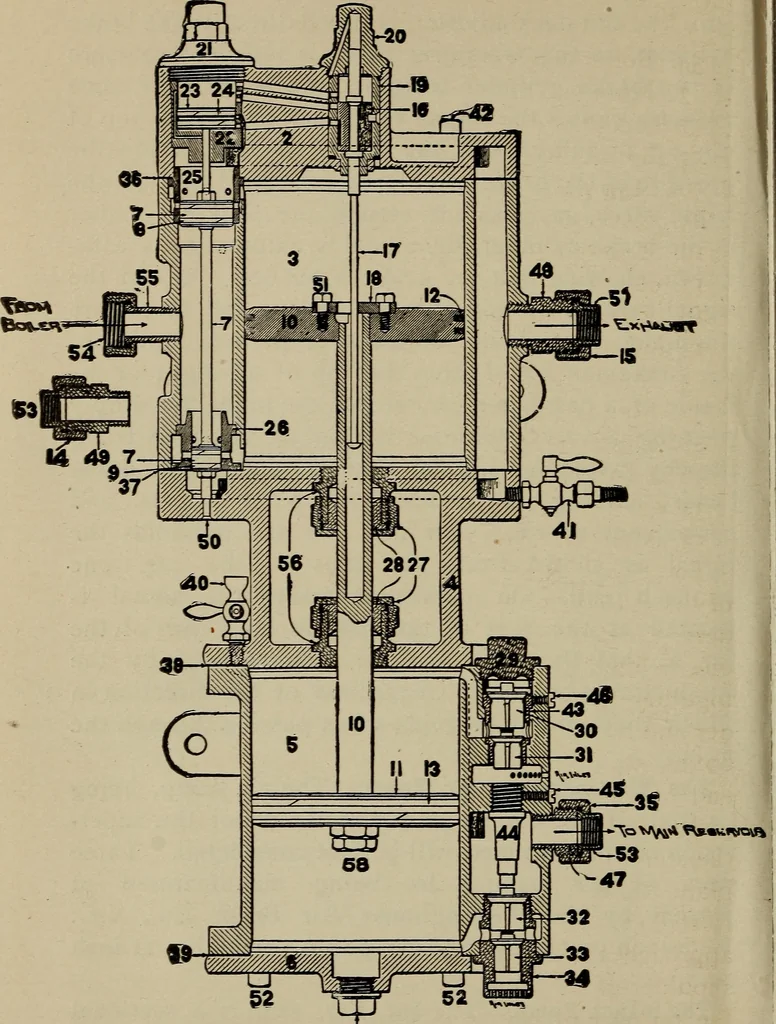

h they might be going when passing through thetrain. The Westinghouse Air Pump. The air pump, beinglocated on the engine, and directly under the super-vision of the engineer, will be first considered. Threesizes of air pumps are being manufactured atpresent by the Westinghouse Air Brake Co.,… … 59 Figure 224 Eight-Inch Pump.—See opposite page. AUTOMATIC AIR BRAKES 515 Eight-Inch Pump on the Up-stroke54. Boiler connection. 7. Main valve. 7-8 and 7-9. Large and small piston of main valve.25 and 26. Main valve bushings.50. Stop pin.23. Reversing piston. 16. Reversing valve. 17. Reversing…
