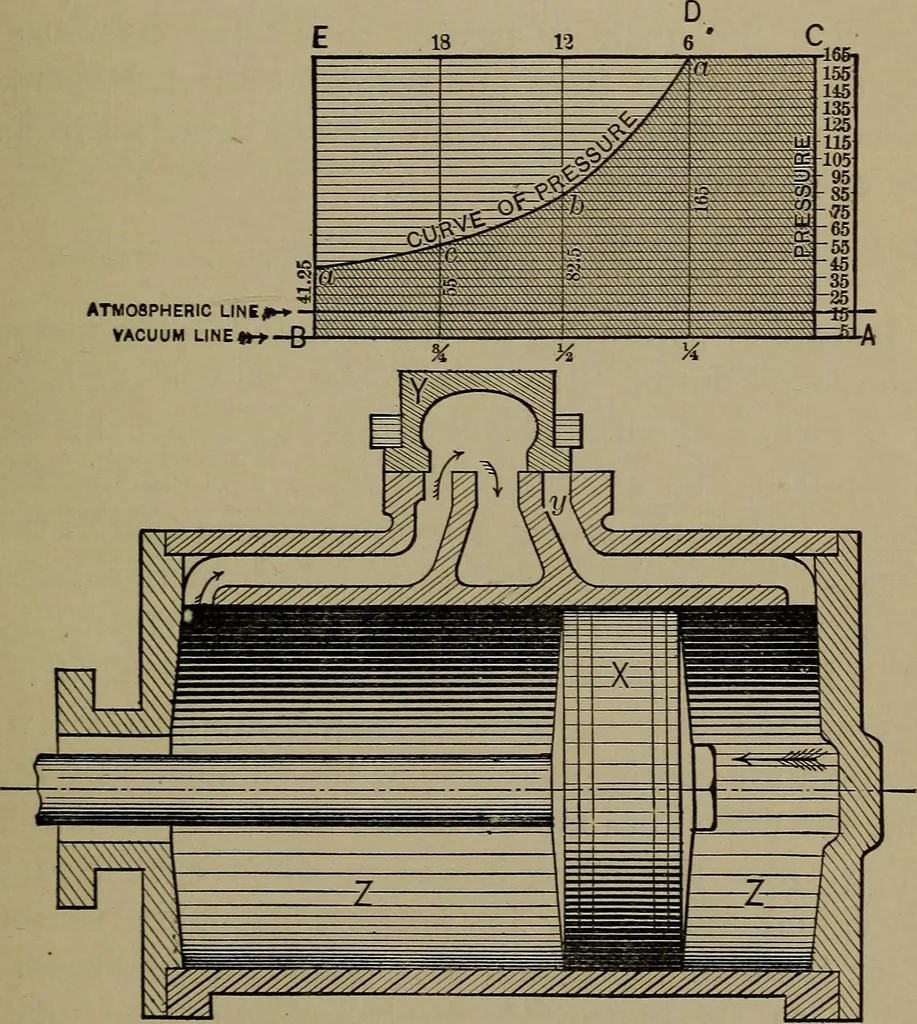

pace. For an exhaustive and easily understood treatise onthe indicator our readers are referred to Hemenways Indicator Practice and Steam-engine Economy,published by John Wiley and Sons, New York. STEAM AND MOTIVE POWER. 36l PRACTICAL ILLUSTRATION OF STEAM-USING. Suppose the steam in our boiler is… … Fig. 46.a stroke of 24 inches. The diagram above the cylin-der represents the action of steam in the cylinder.The vertical lines represent the steam at different 3^2 LOCOMOTIVE ENGINE RUNNING. points of the pistons stroke. If the cylinder werefilled with steam at boiler-pressure during the…
