Locomotive engine running and management : a treatise on locomotive engines, showing their performance in running different kinds of trains with economy and dispatch; also directions regarding the care, management, and repairs of locomotives and all their connections (1888)
Sinclair, Angus, 1841-1919 · New York : J. Wiley · leaf 286

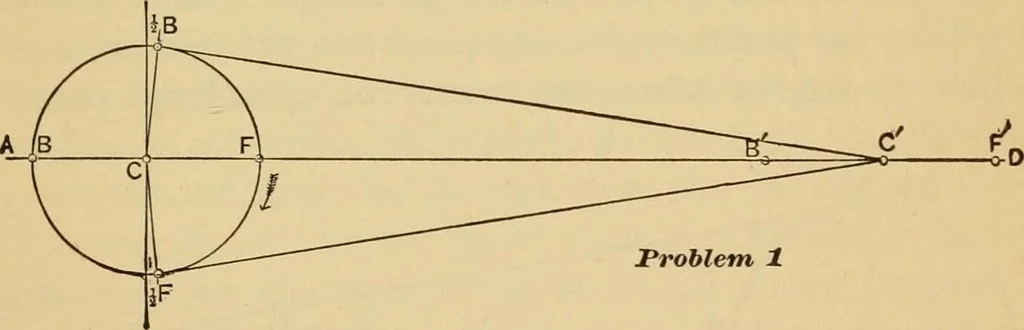

rms. LAYING OUT link-motion: 261 3d, To find relative positions of crank-pin and eccen-trics when at full and half stroke. 4th, To determine the correct length of eccentric-rods. 5th, To find position of saddle-pin. 6th, To find the position of the center of lifting-shaft and length of arms.… … Problem 1 Fig. 20. any point C as a center, and a radius equal to thelength of the crank, describe a circle F, ^F, B, IB ; andlet us call this the crank-pin circle. The straight lineAD intersects the circumference of the circle in thepoints F and B. The point F will be the center ofcrank-pin when…
