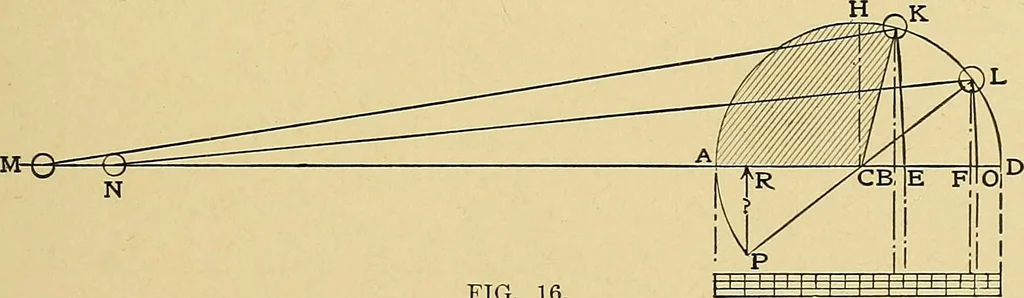

It may be done also in thearrangement of the valve gear where rockers are used, placing the rockerarms in such position as to give the valve more rapid opening and closingmovements on the head end than on the crank end. Professor Sweet pro-vides for equal cut-off in this manner. Similar… … FIG. 16. for the latter. To equalize the compression, therefore, it is customary touse less inside exhaust lap at the head end than at the crank end. Or, thecrank end may be made line and line if the cylinder clearance is small,and the lap at the head end is cut away so as to give negative lap at…
