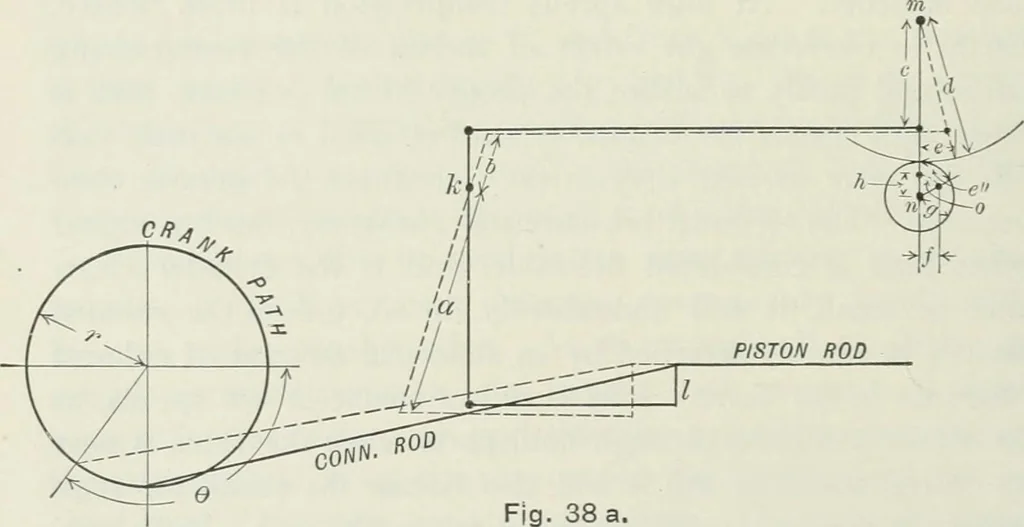

rmingpart of the eccentric valve rod bearing. The sector is oscillatedindependently of the rocker by levers and rods connected withthe crosshead, and the motion of the sector relative to therocker produces a rotary displacement of the eccentric shaftthrough the pinion, and this eccentric… … lever fulcrumed at k, the lower end being connected with thecrosshead 1, gives motion to the sector of radius (at pitchcircle)d, whose center m coincides with that of the rocker, therod from lever taking hold of sector at a distance c from thecenter. The lateral displacement of any point at the…
