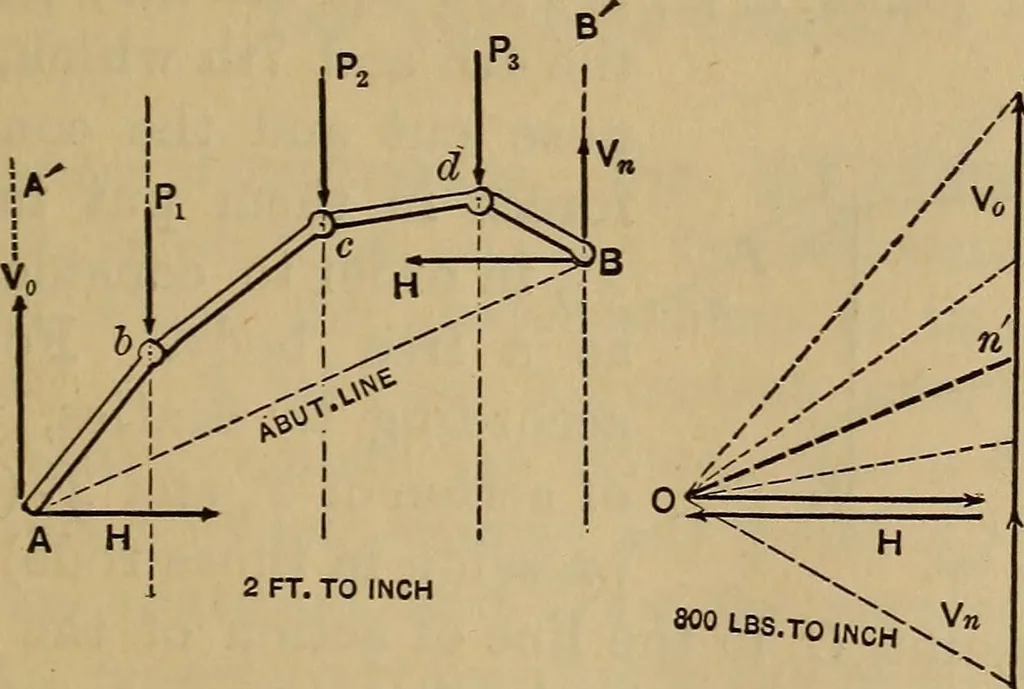

ring the given loads is notshown, but simply the imaginary rods, or segments of anequilibrium polygon, which would support the given loadsin equilibrium if the abutment points A and B, to whichthe terminal rods are hinged, were firm. In the presentcase this equilibrium is unstable since the rods… … 2 FT. TO INCH *»«.BS.TO INCH* vY Fig. 365. Given three loads Plt P2, and P3, and two abutmentverticals A and B, in which we desire the equil. poly-gon to terminate, lay off as a load-line, to scale, Plf P2,and P3 end to end in their order. Then selecting any pole, 414 MECHANICS OF ENGINEERING. 0,…
