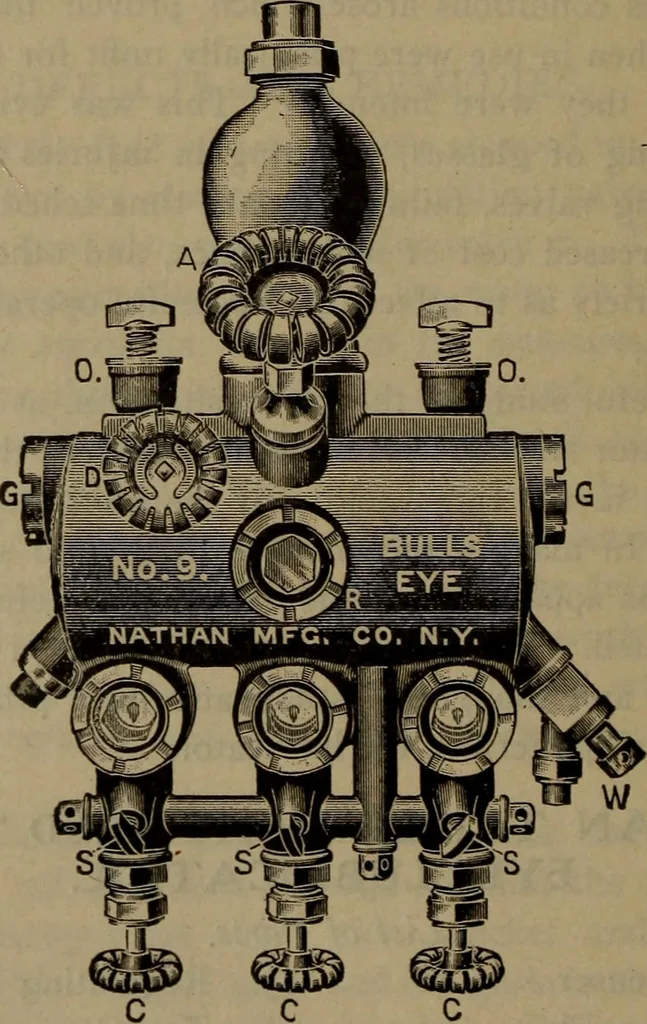

nser 15. Regulating Valve 2. Filling Plug 16. Top Connection 126 LOCOMOTIVE LUBRICATORS. 3- Hand Oiler 17. Equalizing Pipe 5- Reducing Plug 18. Oil Pipe 6. Delivery Nut and 19. Water Pipe Tailpiece. 20. Sight Feed Drain 7. Water-Valve Valve 8. Stud Nut 21. Reserve Glass and 9- Sight Feed Glass and… … c c FRONT VIEW. FIG. 1—PLATE 33. LOCOMOTIVE LUBRICATORS. 127 Construction and Operation. Plate 32 shows a frontview and Plate 33 sectional views of the modern BullsEye lubricator, Nathan type. This instrument is madeto withstand the increased steam pressures used on mod-
