Locomotive text for engineers and firemen; a complete treatise on the engine, electric head-light and standard code of train rules (1908)
National correspondence school of railroading, Chicago. [from old catalog] · [Chicago] · leaf 162

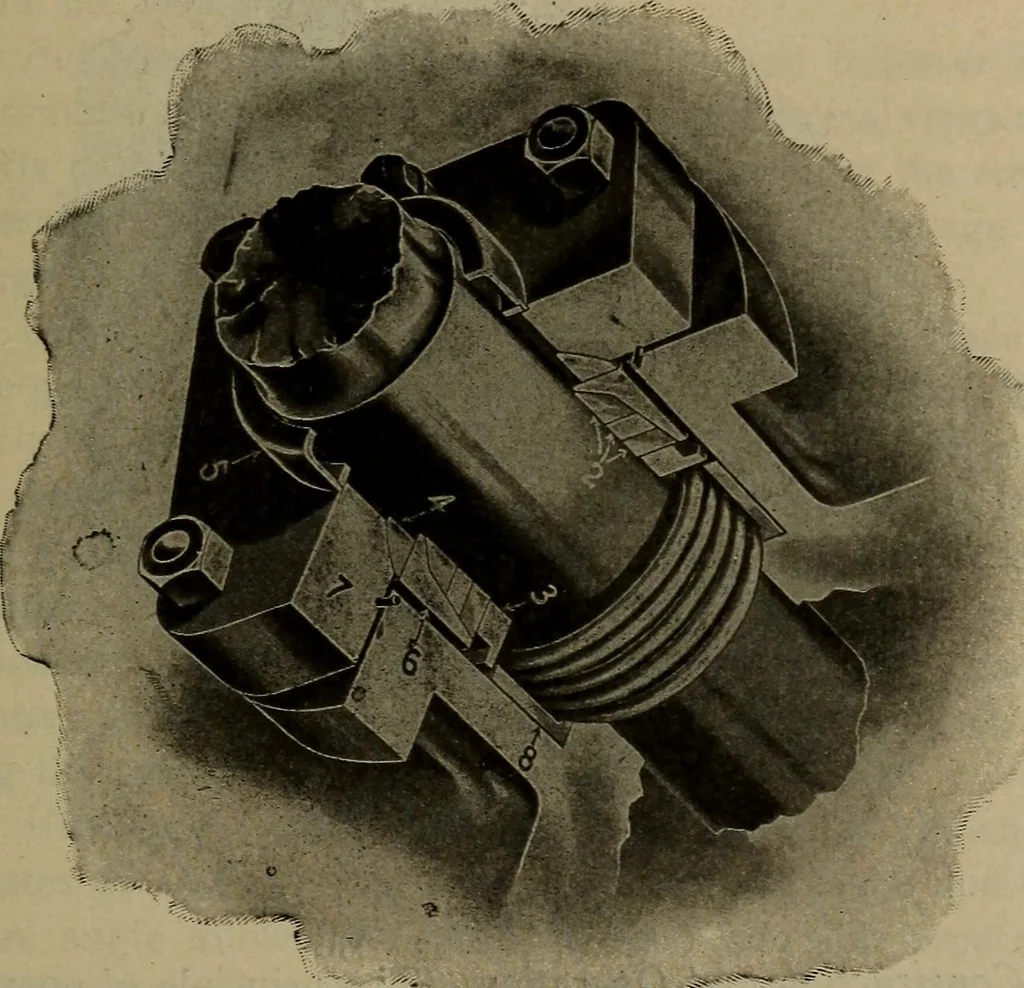

nd glass. The ventstem should be closed and the glass will immediately fillwith condensation from the lubricator. The feed stemshould then be closed. The same operation should be re-peated with the other feeds. The water feed valvesshould then be closed, the body of the lubricator blownout and the… … PLATE 42. List of Parts. 2. Babbitt Metal Ring 6. Vibrating Cup 3. Follower 7. Gland 4. Ball Joint 8. Preventer 5. Swab Cup 152 PISTON AND VALVE-STEM PACKING. Plate 43 shows a sectional view of valve-stem pack-ing. List of Parts. 2. Babbitt Metal Ring 6. Vibrating Cup 3. Follower 7. Gland 4. Ball…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
