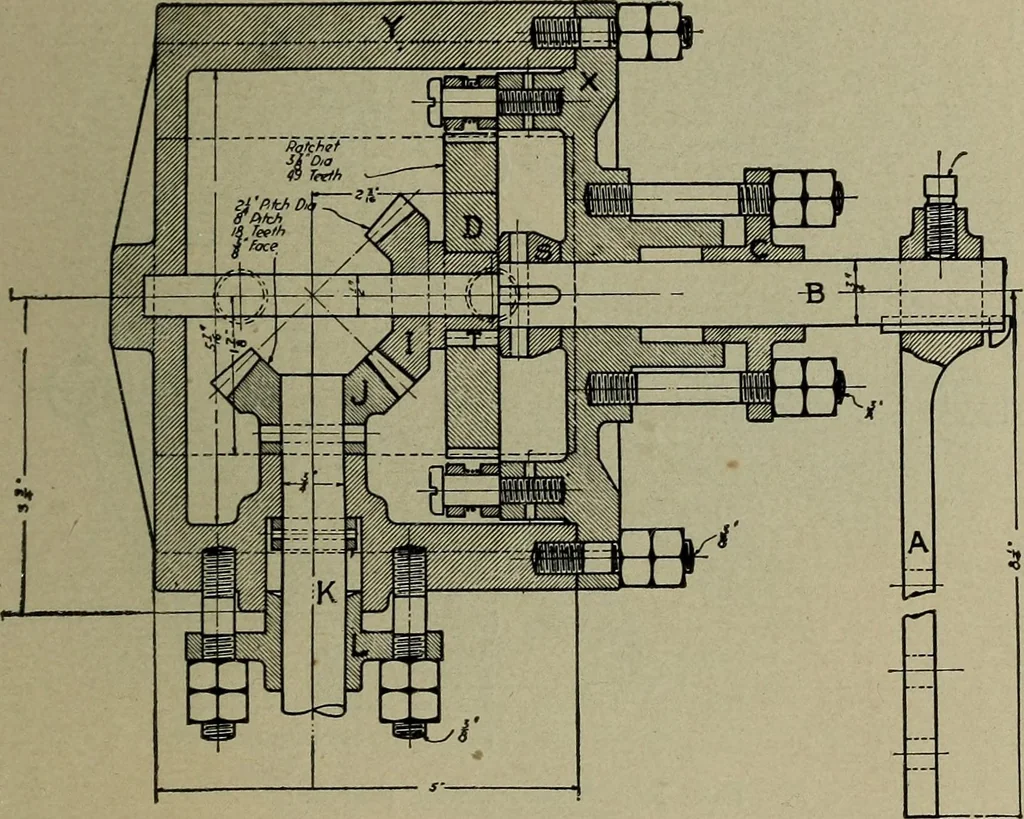

mer For McCord Lubricator. adjustment of the nut Q, which allows a greater or lessamount of sliding of the cross-head P on the pump plungerE. 313. Any individual pump may be operated by hand atany time, and one or more bearings can thus be given an THE TRANSFORMER 107 extra amount of oil with the… … Fig. 29.—Section Through Transformer. body; X, cover plate; C and L, packing glands; B, shaft;A, arm; S, pawl lever; E and G are pawls attached to thepawl lever, S; H and F are pawls which are pivoted onthe cover plate; M, springs; D, ratchet wheel; / and J,miter gear wheels; K, shaft which…
