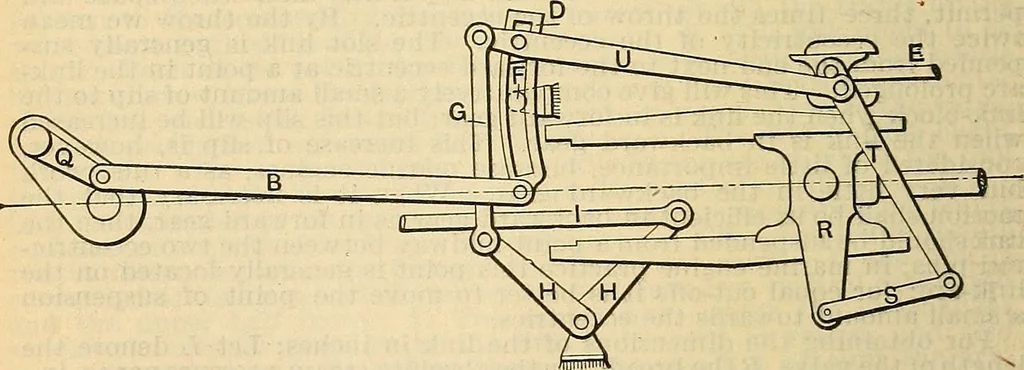

ns; and the link in C is suspended by one of the pins inthe end of the link, or by one of the eccentric-rod pins. (See note onLocomotive Link Motion, p. 1095.) The Walschaert Valve-gear. Fig. 166. — This gear, which wasinvented in Belgium, has for many years been used on locomotives inEurope, and… … Fig. 166.— The Walschaert Valve-gear. lowered in the link by the reversing rod I, operating through the bell-crank levers H, H and the supporting rod G. When the block is in itslowest position the radius rod U has a motion corresponding in directionto that of the rod B; when the block is at its…
