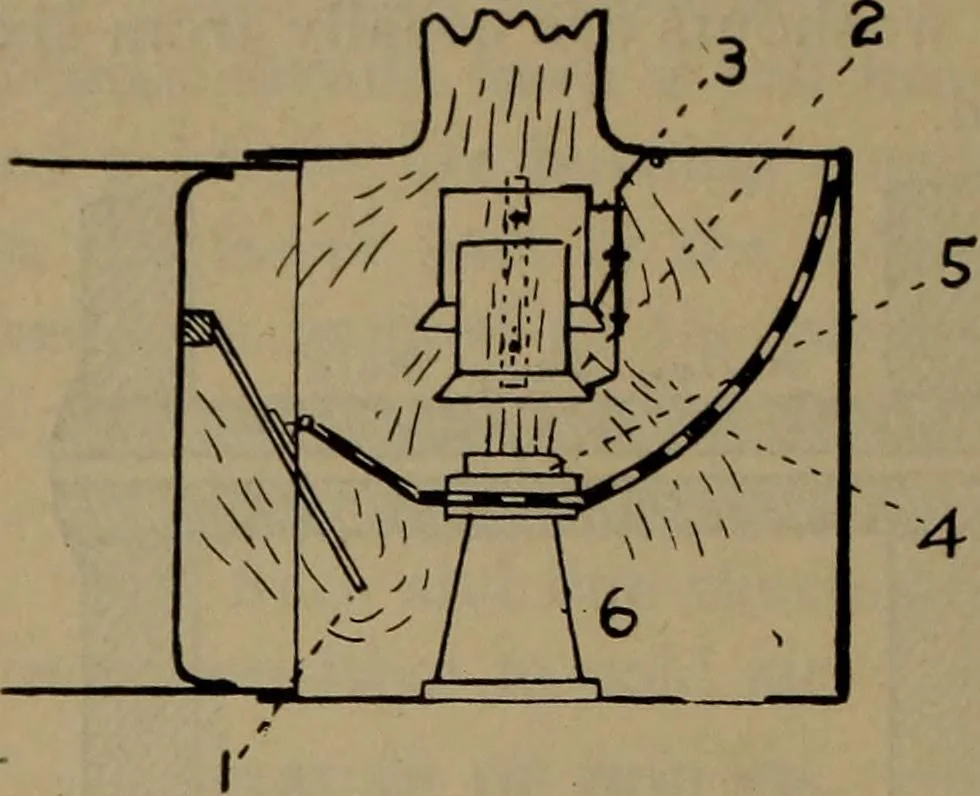

tends to bring about a better circulation of theboiler. DRAFT APPLIANCES. The draft appliances of a locomotive (Fig. 11) in-clude diaphragm (1),petticoat-pipe (2), sleeve (3), net-ting (4), exhaust nozzle (5) and exhaust (6). The diaphragm is a sheet of steel fastened at anangle just above the top… … FIG. 11. locomotives, which when raised or lowered governsthe draft through the tubes. Raising the diaphragmdecreases the draft through the lower and increases thedraft through the upper flues. The petticoat-pipe (2), which is cylindrical in shape,is set directly over the exhaust nozzle (5), and…
