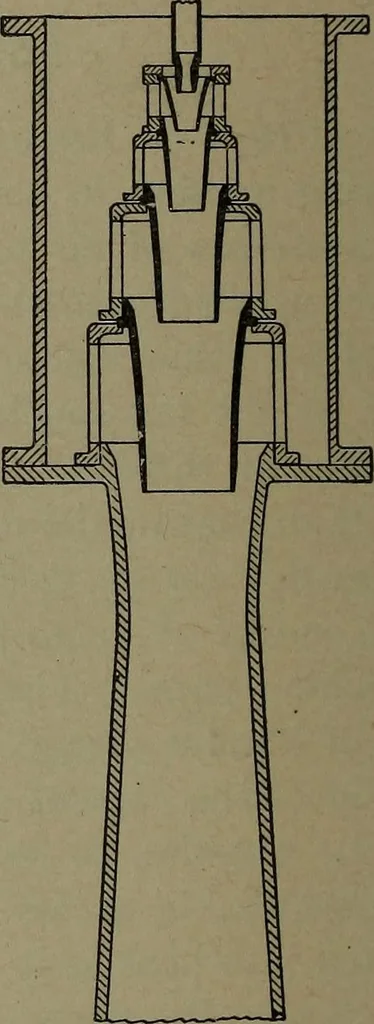

Y///////////A Fig. 383. — Locomotive Smoke Box. … Fig. 384. — Forced-draft Blower. mixed jet—the action approaching that of the injector in this re-spect. Note how the entering air is split up into several concentricdivisions, with the intention of reducing the eddy loss during the mixingoperation. The following example, worked out with assumed…
