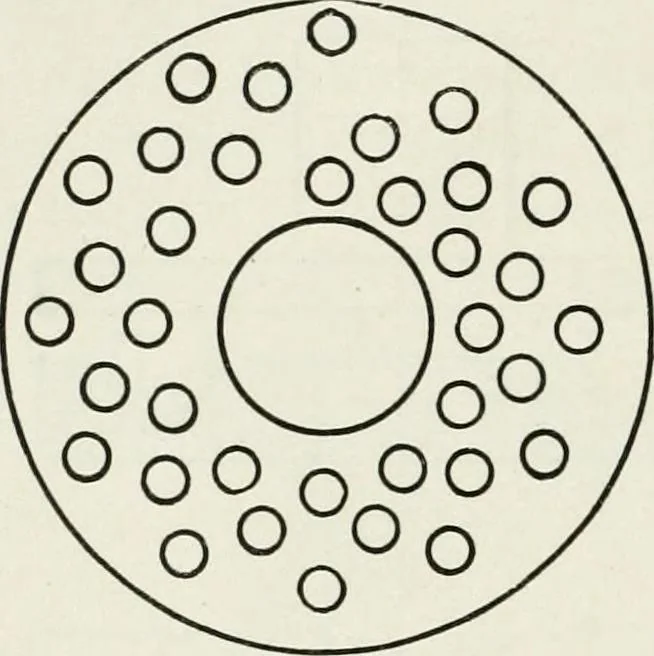

a self-adjusting spher-ical collar. The radii of the curvedraces should not be less than two-O _ Or^Or^X thirds the diameter of the balls. To guide the balls in two-point contact use is sometimes made of a cage ring, a flat collar drilled with Or^O i^OoO / holes just a trifle larger than the balls… … Fig. 69. 74. Materials and Wear.—The balls themselves are alwaysmade of steel, hardened in oil, tempered and ground. Theyare usually accurate to within one ten-thousandth of an inch.The plates, rings and journals must be hardened and groundin the same way and perhaps are more likely to wear outor…
