Benjamin, Charles H[enry], 1856- [from old catalog] · New York, H. Holt and company · leaf 339

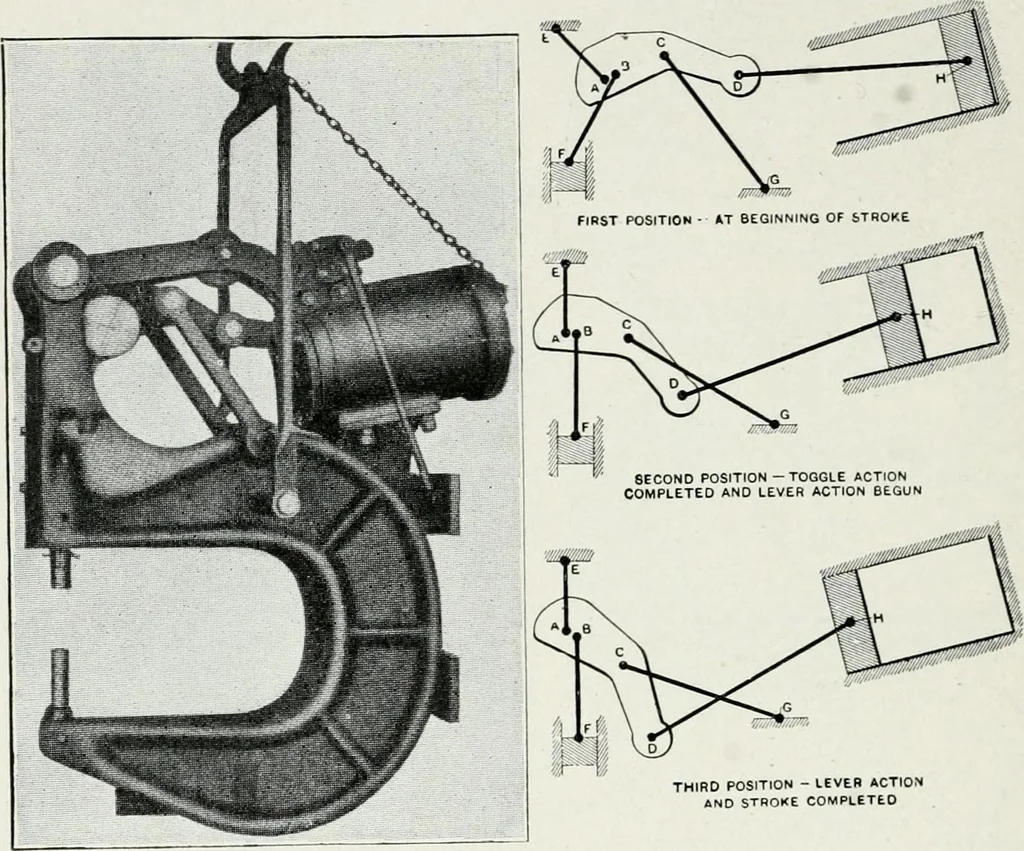

Fig. 162. 164. Assignment.— P = (8000 to 50,000) lb. p = (Air pressure 80 to 100) lb. per sq. in. r=(4 to 12) L. C. type in. r = (16 to 66) J. type in. 1= ■ in. l= in. d (min.) = .. degrees. 302 MACHINE DESIGN Second Alternate, Design No. 3 … THIRD POSITION - lEVEH ACTIONAND STROKE COMPLETED Fig. 163. Fig. 164.—Mechanism. The Hanna Riveter
Machine design
