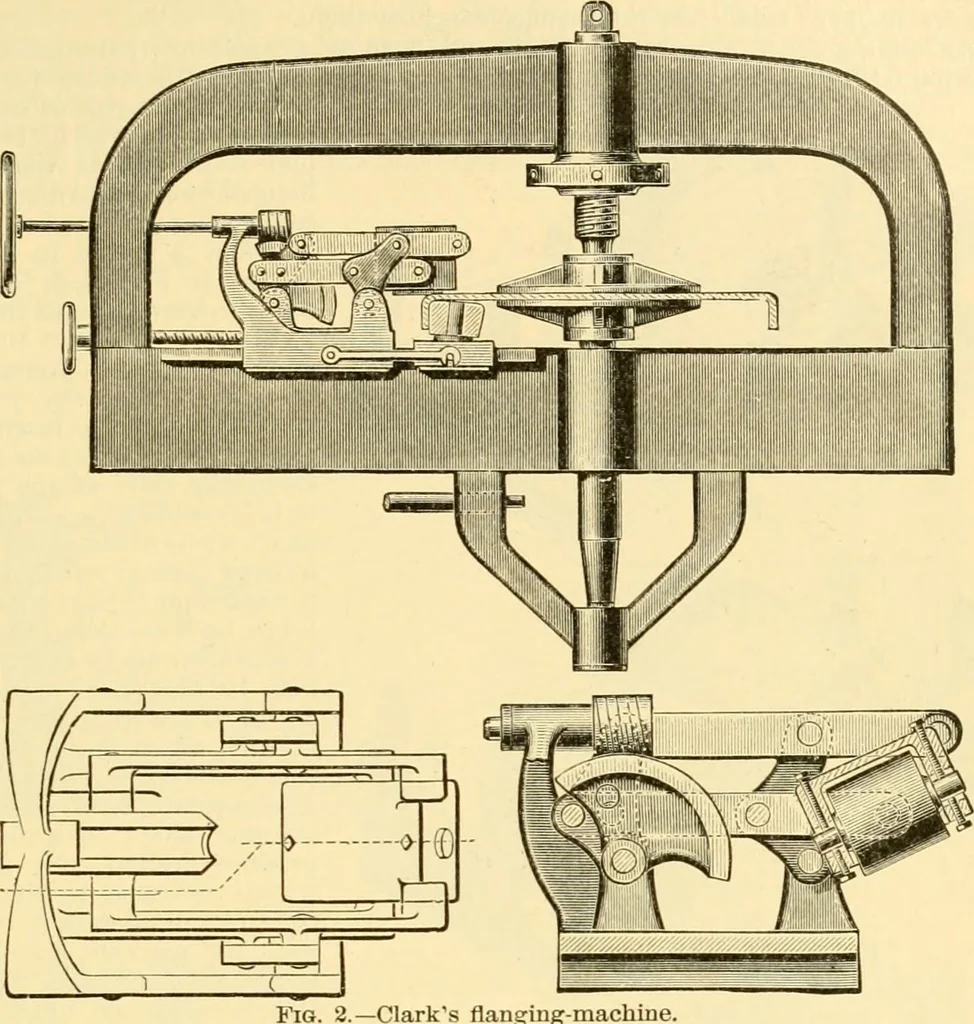

l which is aiiajited toreceive and ilrive (lie former over which tlie head is formeij. At the back of the machine aretwo arms having T-sluls, Ijy whicli are attached gauge-l)lock,s, liaving swinging pieces, bywhich the head is centered on the former. The follower plate is then brought down on to… … Clarks flanering-machiue. head straight and flat on the former while being turned. The machine is then set in motion,and the straight or break-down roll brought against the edge by means of the large screwin the bed. This roll is so mounted as to enable it to be pre-sented at any desired angle, and…
