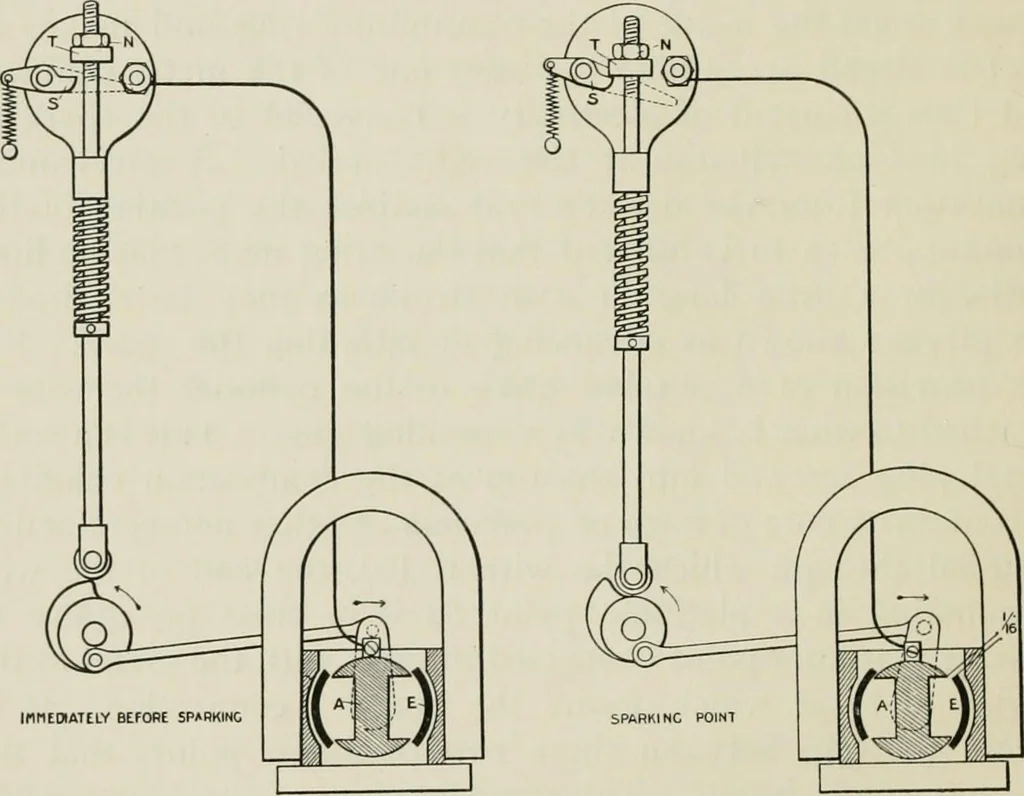

e core itself.Between the armature and the poles of the magnet is mountedan oscillating shield of soft iron. This shield is in the formof two curved pieces connected at the ends and mounted onpivots, and it receives its oscillating movement from a cam onthe half-time shaft. These oscillations of… … IfinEOIATtLY BEFORE SPABKINO SIMMS-BOSCH MAGNETO SYSTEM connected to the terminal of the armature. A light springmechanism carries what is called an interrupter arm, whichnormally rests against the insulated pin and forms an electriccontact with it, but which, by means of the movement of thecam on…
