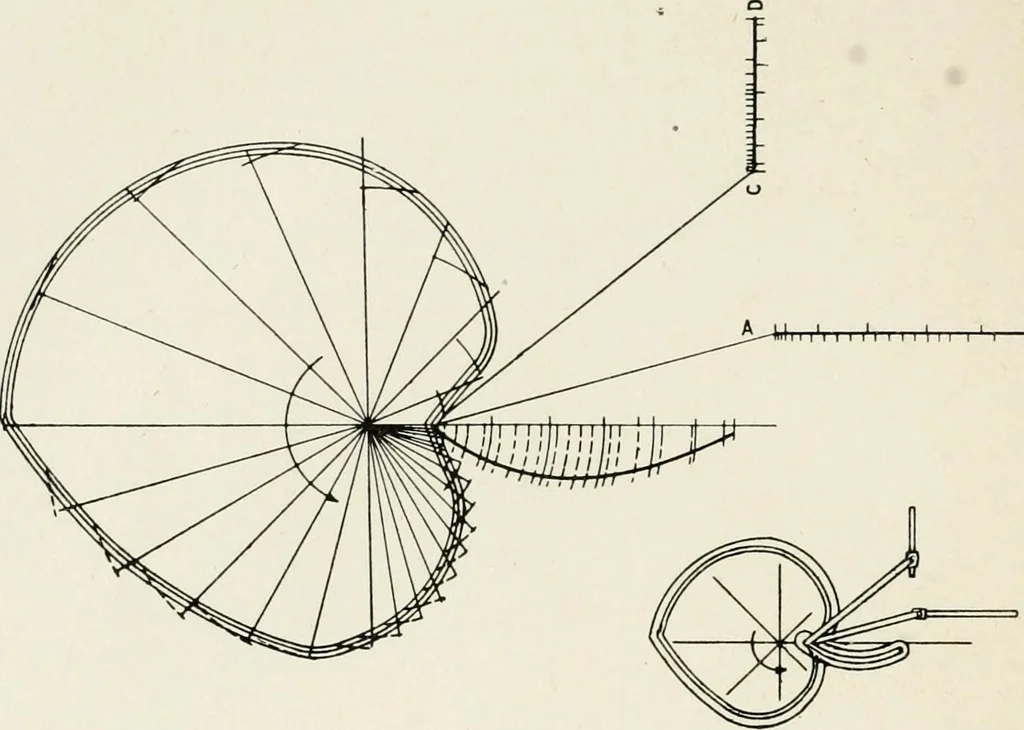

Fig. 183. 180. Assignment.—Having given an oscillating arm, pivotedat point B, design a cam to move the end of the arm over the path 1, 2, 3, 4, 5 13. The cam may have a uniform or varying motion while the arm may move uniformlyor according to any law of motion desired. 320 MACHINE DESIGN Kinematic… … Fig. 184. 181. Assignment.—Two crossheads are to be driven in pathsAB and CD intersecting at right angles. The length of thestroke, CD, is one-half that of AB. Motion is to be given toboth crossheads by a single rotating cam. Such guides andconnecting rods as are necessary may be employed. No…
