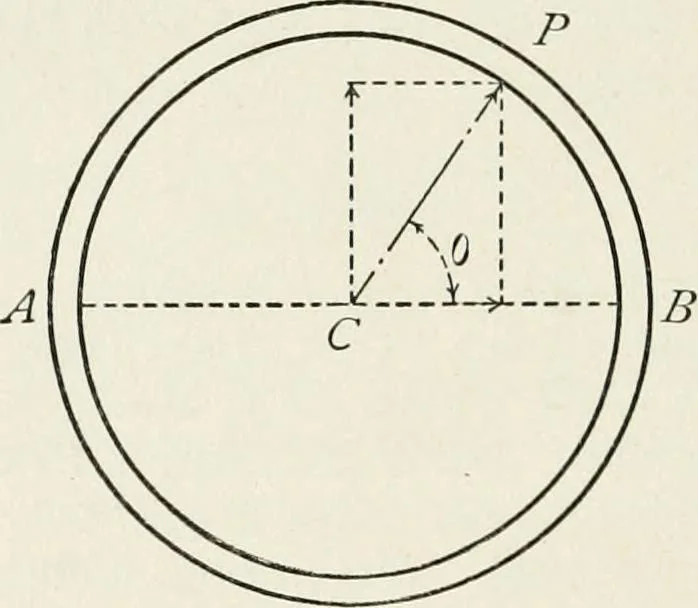

8, 1906. Cast Iron in Machine Frames. Am. Mach., Oct. 24, 1907. Design of Machine Frames. Mchy., Aug., 1908. 1904. CHAPTER III CYLINDERS AND PIPES 21. Thin Shells.—Let Fig. L5 represent a section of a thin shell,like a boiler shell, exposed to an internal pressure of 73 pounds persquare inch. Then,… … Fig. 15. Let d— diameter of shell in inches r— radius of shell in inchesZ= length of shell in inchest— thickness of shell in inchesS= tensile strength of material. Draw the radial line CP to represent the pressure on the elementP of the surface. Area of element at P = IrdO.Total pressure on element…
