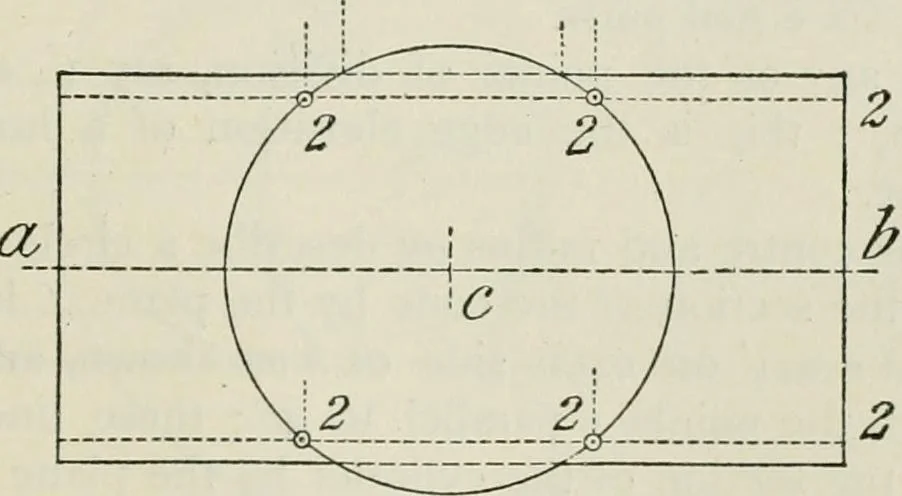

from the points in plan to meet bn in 2, 2, which pointsare on the elevation of the line of intersection. Repeat this construction for the planes through theother points of division of the semicircle and draw curvesthrough the points so determined, obtaining two curves forthe elevation as shown,…
