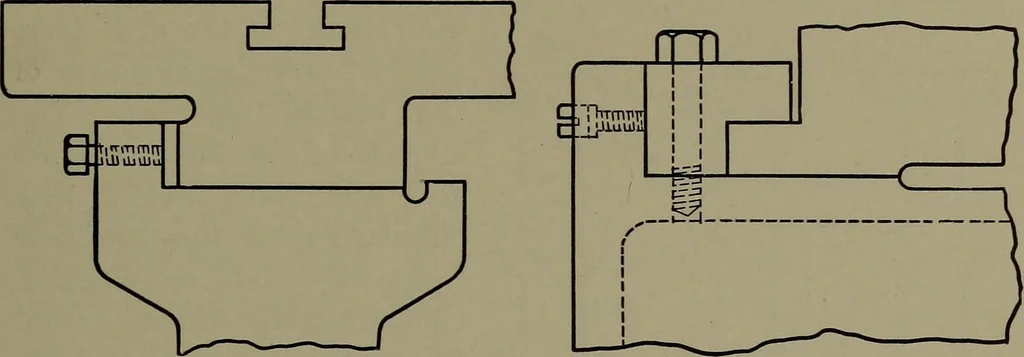

Flat ways on machine tools are the rule in Englishpiactice and aie gradually coming into use in this country.Although more expensive at first and not so simple they aremore durable and usually more accurate than the angular ways. Fig. 44 illustrates a flat way for a planing machine. The other FLAT… … Fig. 44. Fig. 45. Fig. 45 shows a portion of the ram of a shaping machine andillustrates the use of an L gib for adjustment in two directions.Fig. 46 shows a gibbed slide for holding down the back of a lathecarriage with two adjustments.
