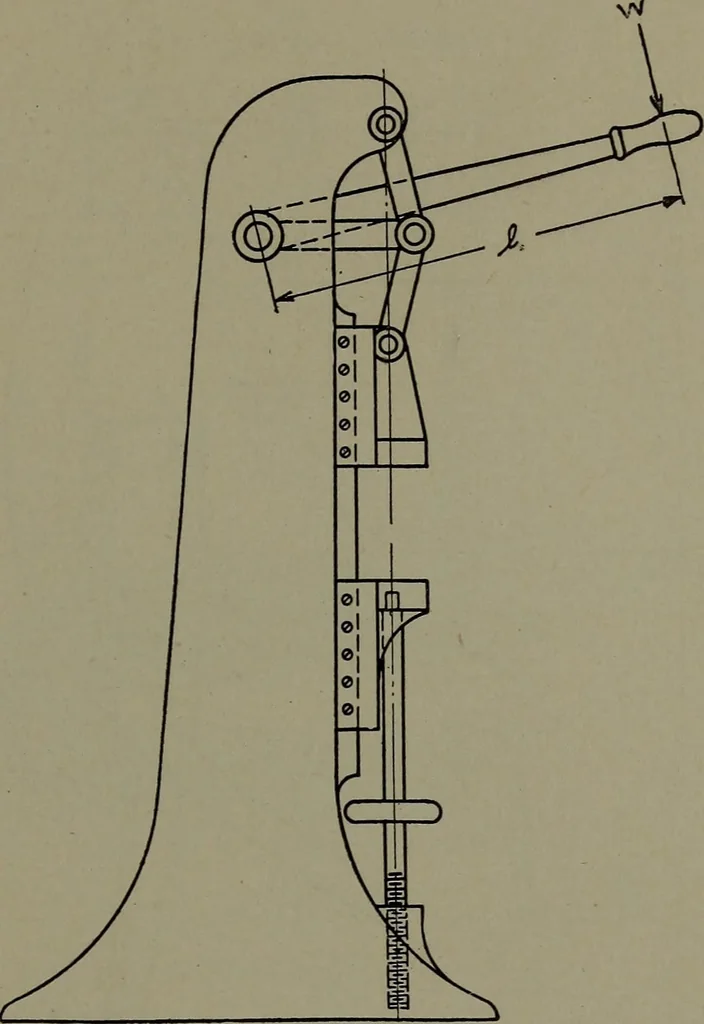

Fig. 125, B. In case the movement of the sliding block is desired greaterthan that allowed here, the lever may be arranged as shown inFig. 125, B. ALTERNATE DESIGNS 261 Second Alternate, Design No. 1 … Fig. 126.Vertical Hand-power Press 138. Assignment. — W = . ... ,1= .... ,V =...., 6 (min.)= . . . This design follows the principles laid down in No. 1, with twoexceptions. First, the length V here becomes so small that aseparate crank cannot be used and a bent shaft or an eccentric issubstituted.…
