Benjamin, Charles Henry, 1856- [from old catalog], Hoffman, James David, 1868- [from old catalog] joint author · New York, H. Holt and company · leaf 47

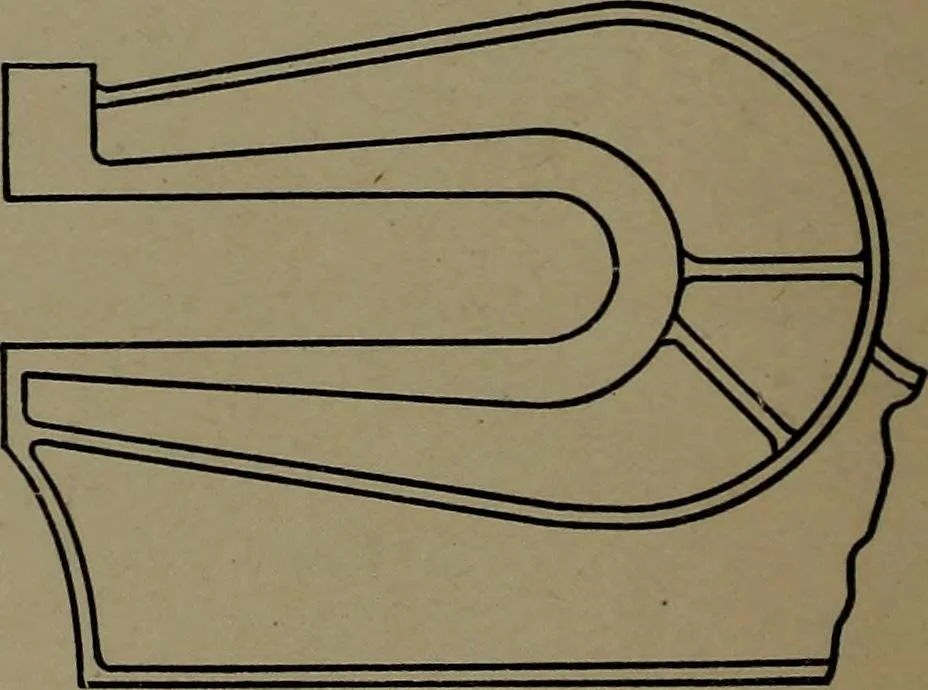

distancefrom center of cutter to centerof upright. It should then beof constant cross-section fromthe bottom to the top of thestraight part. The curved orgoose-necked portion shouldthen taper gradually. The frame of a shear press orpunch is usually of the G shapein profile with the inner fibers in… … Fig. 7. 15. Tests on Simple Beams.—In 1902, a series of experimentswas made on cast-iron beams of various sections at the CaseSchool of Applied Science. * The work was done by Messrs. CAST IRON BEAMS 29 A. F. Kwis and R. H. West^ under the direction of the authorand the results were reported by him…
Machine design
