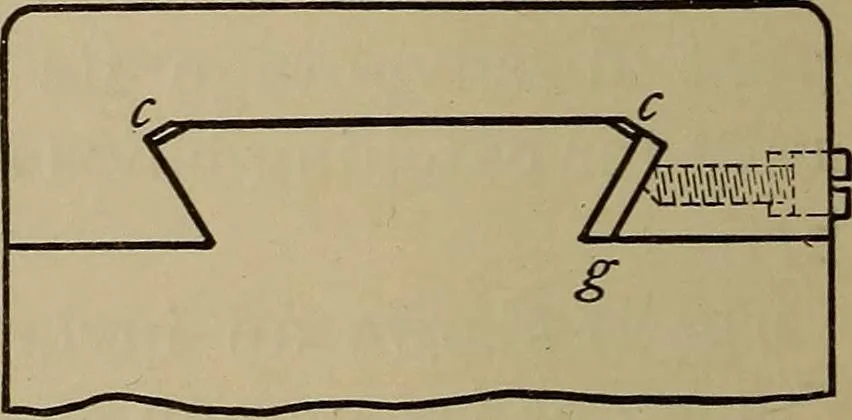

Fig. 28. 38. Gibbed Slides. All slides which are not self-adjusting for wear must be provided with gibs andadjusting screws. Fig. 29shows the most commonform as used in tool slidesfor lathes and planingmachines. The angle employed isusually 60 deg.; notice thatthe corners c c are clipped for… … Fig. 29. FLAT SLIDES. 89 corner bearing ; notice also the shape of gib. It is bet-ter to have the points of screws coned to fit gib andnot to have flat points fitting recesses in gib. Thelatter form tends to spread joint apart by forcing gibdown. If the gib is too thin it will spring under…
