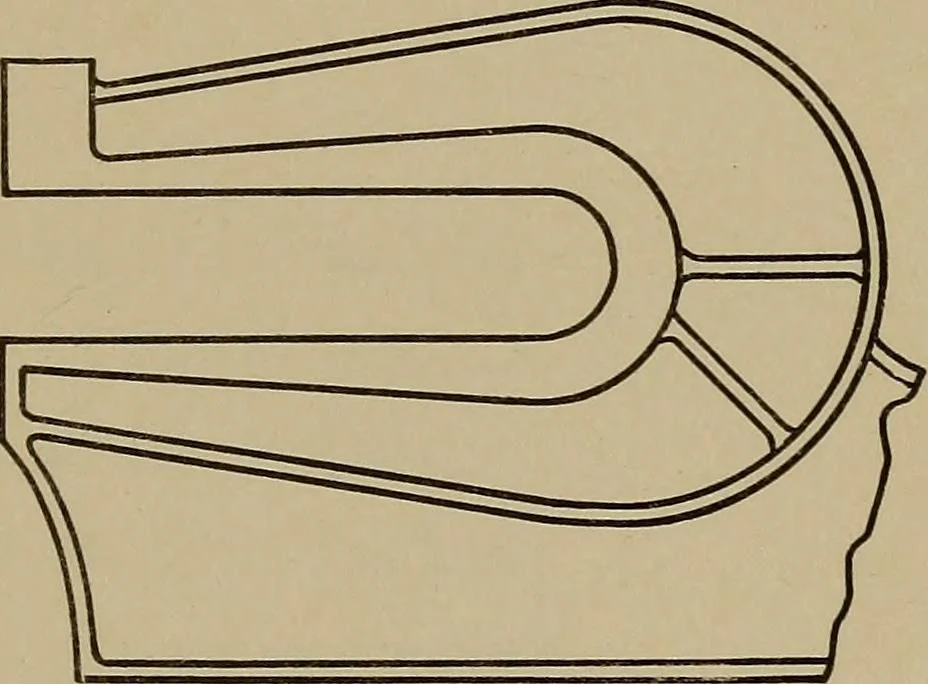

stance from center ofcutter to center of up-right. It should then beof constant cross-sectionfrom the bottom to thetop of the straight part.The curved or goose-necked portion shouldthen taper gradually. The frame of a shear press.or punch is usually ofthe G shape in profile with the inner fibers in… … Fig. 7. 24 MACHINE DESIGN. Exercises. 1. Discuss the stresses and the arrangement of material inthe girder frame of a Corliss engine. 2. Ditto in the G frame of a band saw. Problem. Design a G frame similar to that shown in Fig. 7, for a shearpress capable of shearing a bar of mild steel 1| by 1£…
