Machine design; a manual of practical instruction in designing machinery for specific purposes, including specifications for belts, screws, pins, gears, etc., and many working hints as to operation and care of machines (1918)
Wallace, Ernest L · Chicago, American technical society · leaf 167

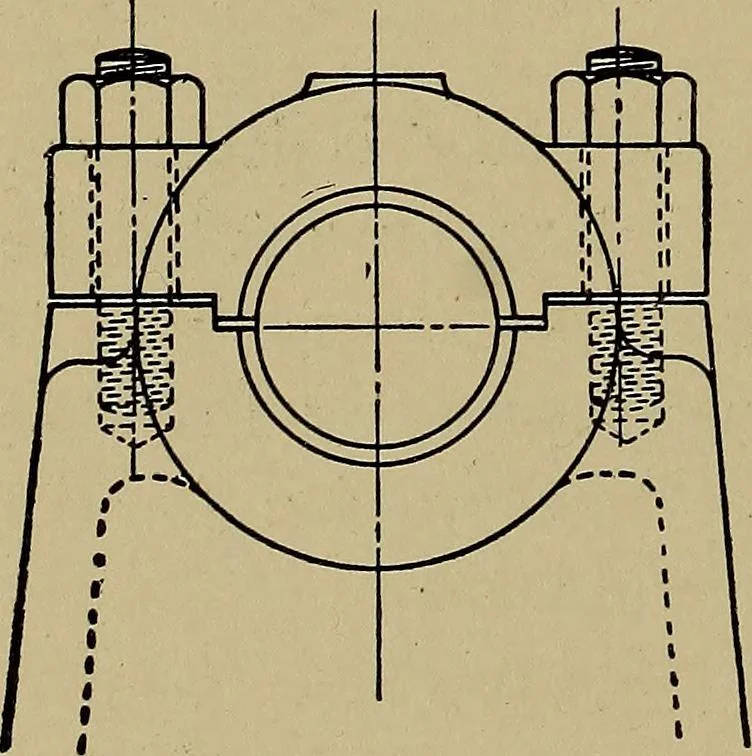

gs areillustrated in Figs. 88, 89, and 90. Large engine shaft bearings have specialforms of adjustment such as wedges andscrews, which take up the wear in alldirections at the same time accuratelypreserving the alignment of the shafts; but this refinement is seldomrequired for shafts of ordinary… … Fig. 88. Tongued Cap Bearing MACHINE DESIGN 155 be concentric with the original axis of shaft, regardless of the wearwhich has taken place in the bore. Lubrication. The lubrication of bearings is a part of the design,in that the lubricant should be introduced at the proper point, andpains taken to…
