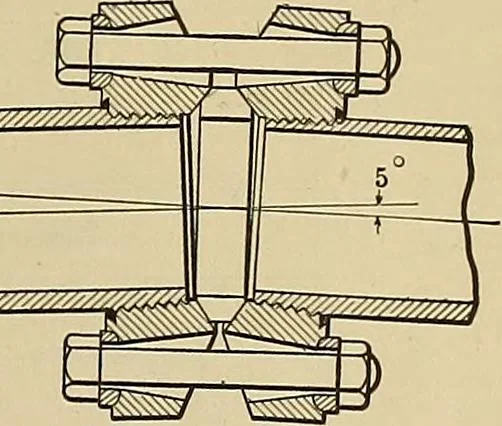

W/////M,, ITnion Tor Copper Tube Connection … i - ^-. Fig. 17.- Fittings used in U.S. Torpedo Service Figs. 15 to 18.—Pipe fittings for high-pressure air. Fig. 16.-Flange Union for1000 Pounds Air Pressure from 3 to 8 ins. and larger diameters with ring-grooved male andfemale ends for the copper gasket. The flanges and bolts are also ofsteel,…
