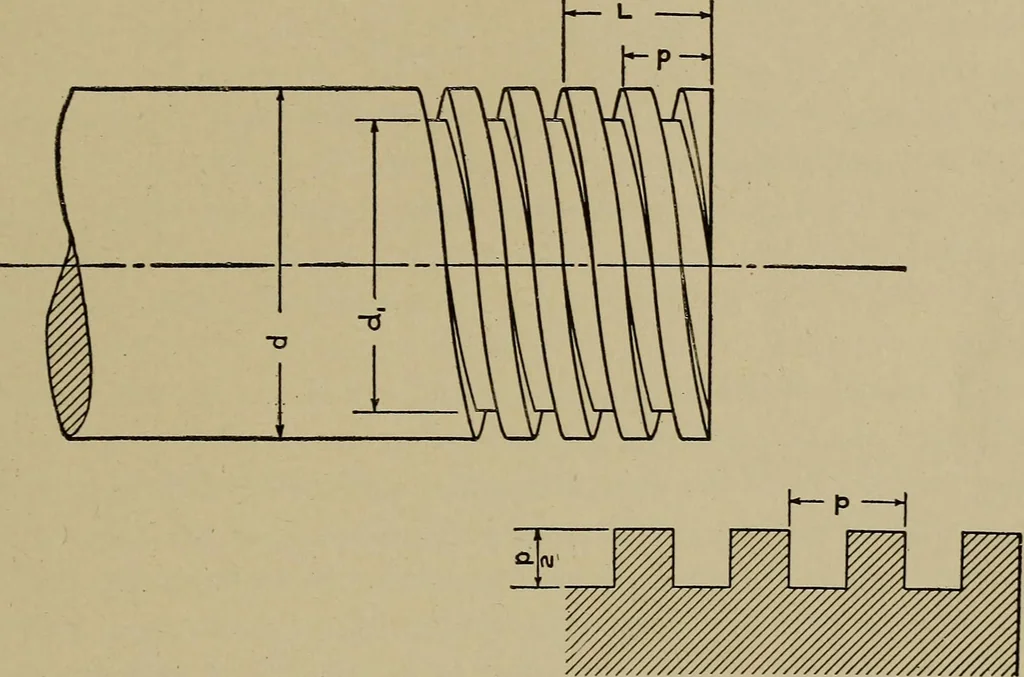

s F2nl = Pp (13) Friction, however, is always present; hence the ratio of the usefulwork (Pp) to the work applied (F2nl) is not unity as above re-lations assume. From numerous experiments on the friction of screwsand nuts, it has been found that the efficiency may be as low as 10per cent.… … Fig. 20. Square Thread pounds; or the initial tension is somewhat less than the tabular safeload shown for a 1-inch bolt, with S assumed at 10,000 pounds persquare inch. For shearing stresses the bolt should be fitted so that the bodyof the bolt, not the threads, resists the force tending to shear…
