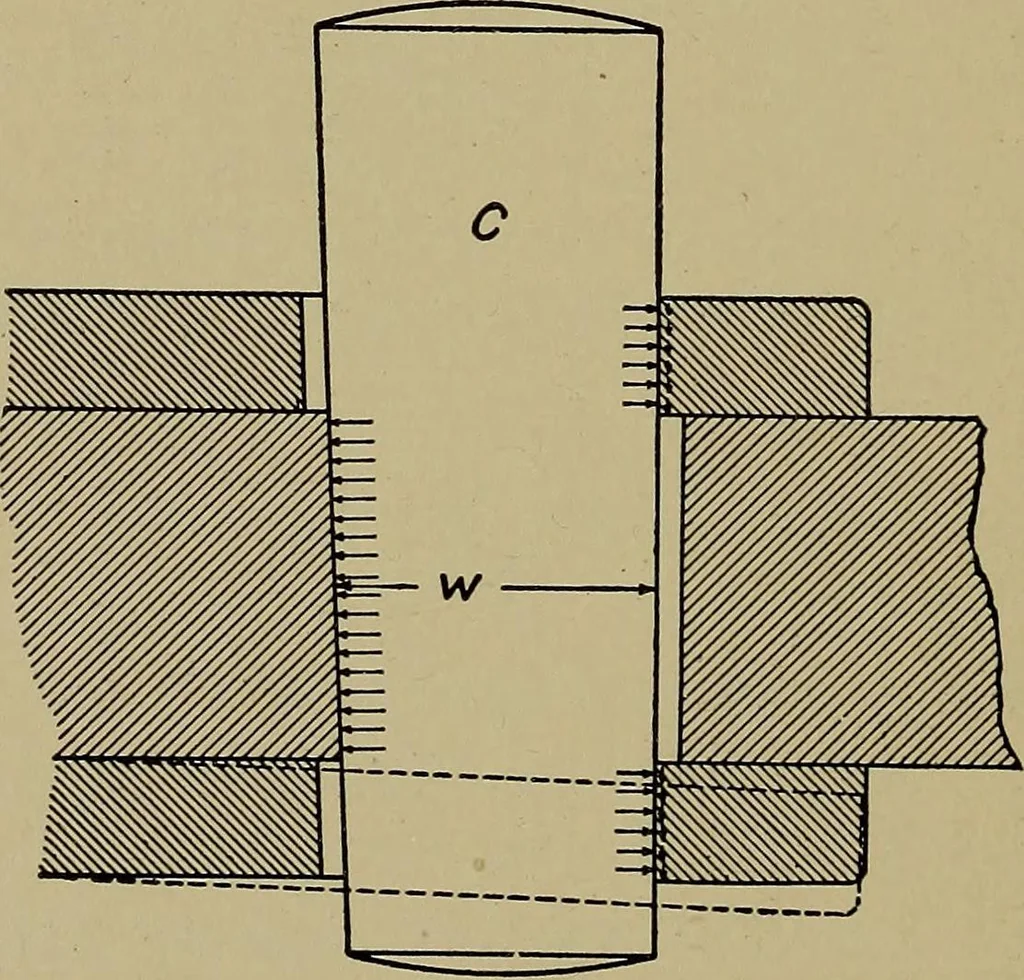

n Fig. 40, thetaper may be greater thanthis, perhaps as much as \\inches per foot. In the common use ofthe cotter for holding thestrap at the ends of connect-ing rods, the strap acts like amodified form of socket.This is shown in Figs. 40and 41. Here, in additionto holding the strap and rodtogether… … Fig. 41. Cotter at End of Connecting Rod MACHINE DESIGN 71 The general mechanical fault with cottered joints is that theaction of the load, especially when it constantly reverses, as in pumppiston rods, always tends to work the cotter loose. Vibration alsotends to produce the same effect. Once this…
