Hydraulic motors, with related subjects, including centrifugal pumps, pipes, and open channels, designed as a text-book for engineering schools (1905)
Church, Irving Porter, 1851-1931 · New York : J. Wiley & Sons; [etc, ] · leaf 299

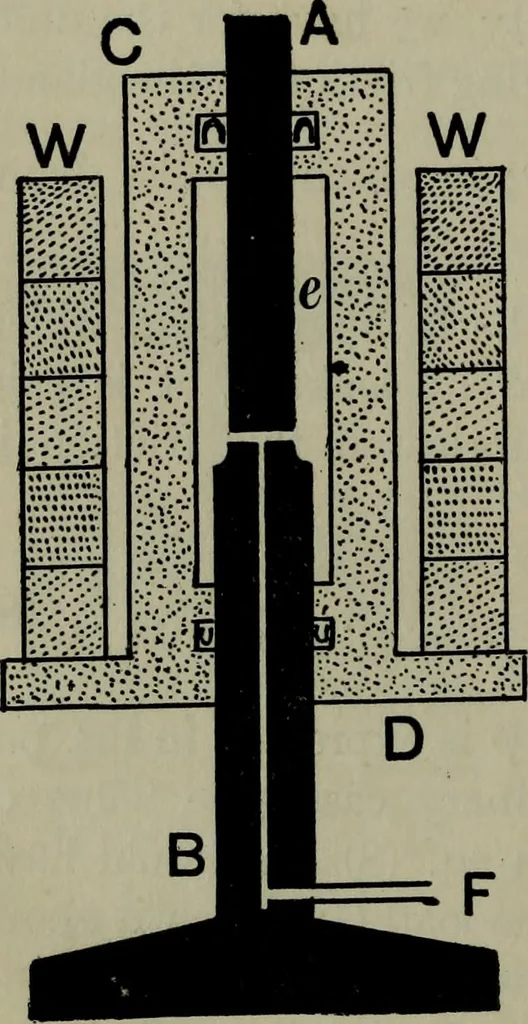

) is fixed and placed below,and the cylindrical vessel, CD, whichis loaded and movable, is placedabove. Also, the ram protrudesthrough the loaded vessel at A,requiring two packings for the twosliding joints. Here the diameter &rof the upper portion of the ram isa little smaller than that, d, of… … jd24 -d2- the unit Fig. 120. i.e., tne unit pressure (above the atmosphere) in the spacee, when the whole load is sustained, is 4G • (9) v~7z{d2-d,2y if friction is neglected. By this device, called a differential § 157. HYDRAULIC ACCUMULATORS. 255 accumulator less load is needed to produce a given…
Hydraulic machinery
