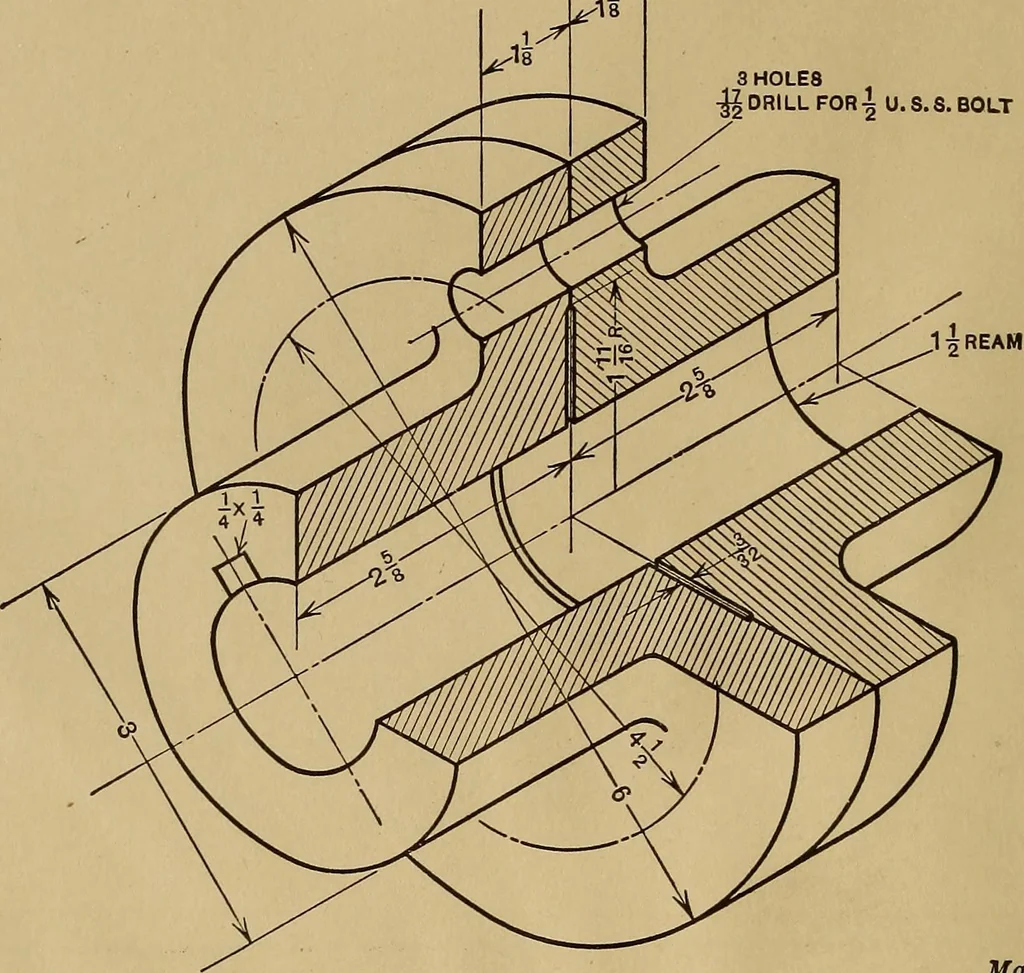

lipses, as illustrated in 336 MECHANICAL DRAWING Fig. 19, which shows a pillow-block, and also in Fig. 20 whichshows a shaft coupling partly in section. The ellipses on suchdrawings can be formed quite neatly with a little practicewhen isometric drawings are made free-hand on ruled pads.If the… … Machinery Fig. 20. Isometric Drawing of a Shaft Coupling be rate enough for practical purposes. This method willillustrated by taking the coupling drawing as an example. The method of procedure is illustrated in Fig. 21. Anisometric drawing of a square is first made, as shown to theright. The…
