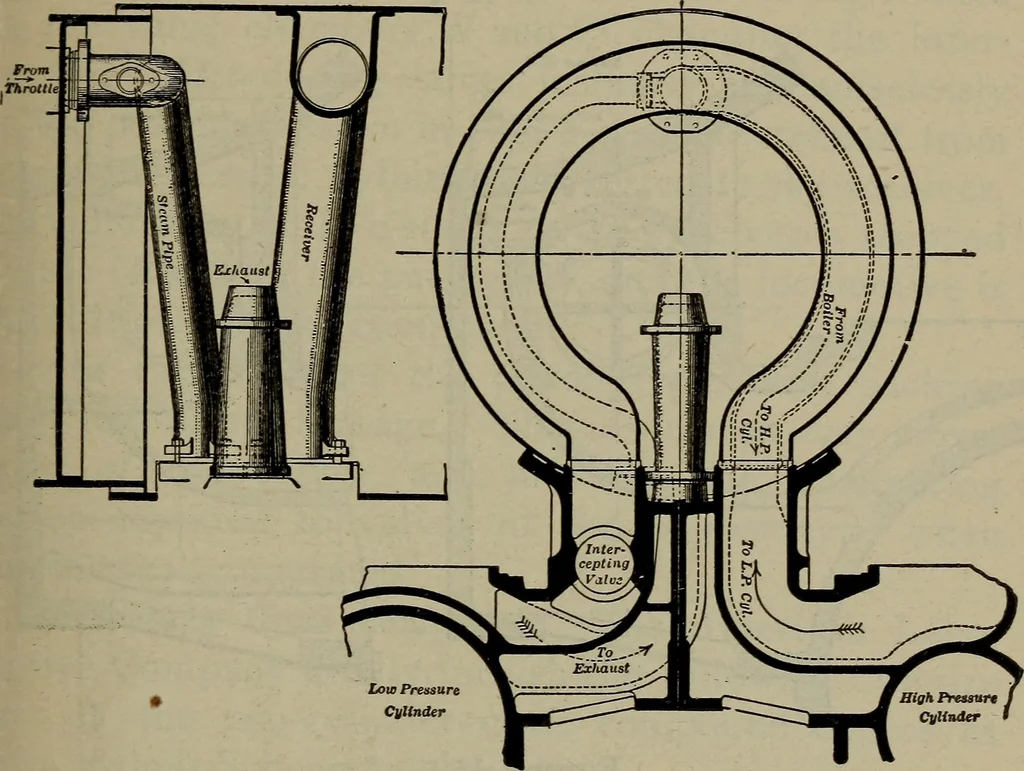

closes, as it is evident that there is nofurther need of live steam in the receiver. A further function of the reducing valve is to regu- COMPOUND LOCOMOTIVES 3^5 late the pressure in the receiver so that the total pres-sure on the pistons of the high and low-pressurecylinders may be equalized. The… … Figure 151 reducing valve C is operated automatically by thepressure in the receiver. To this end the port E isprovided, communicating with the receiver, and thespace in front of the reducing valve; as the pressurerises the steam acts on the large end of the reducingvalve, causing it to move…
