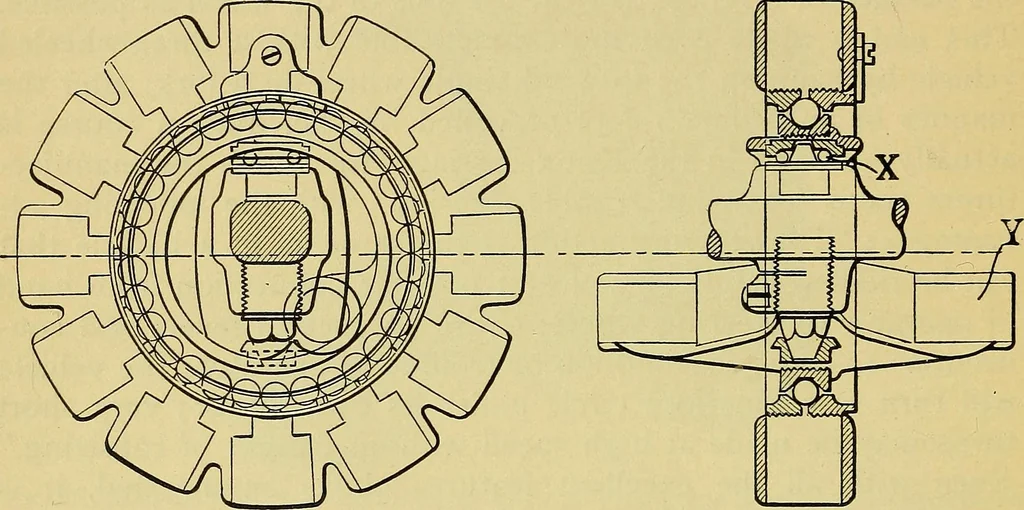

nious and highly efficient device, 76 SELF-PROPELLED VEHLCLES. which has been in use on these carriages for nearly four years.As shown in the diagram, the forward wheel has twelve spokesmounted on mortises on a malleable ring, in which are screwedhardened steel ball cones, provided with a locking… … Fia. 72.—Steering Head of the Duryea Three-wheeled Carriages. X is the support of thewheel which turns on the ball race shown. Y is the attachment of the steeringlinks. and bottom of the steering head are mounted hardened cups forthe steering pivot cones, the one fixed permanently, the…
