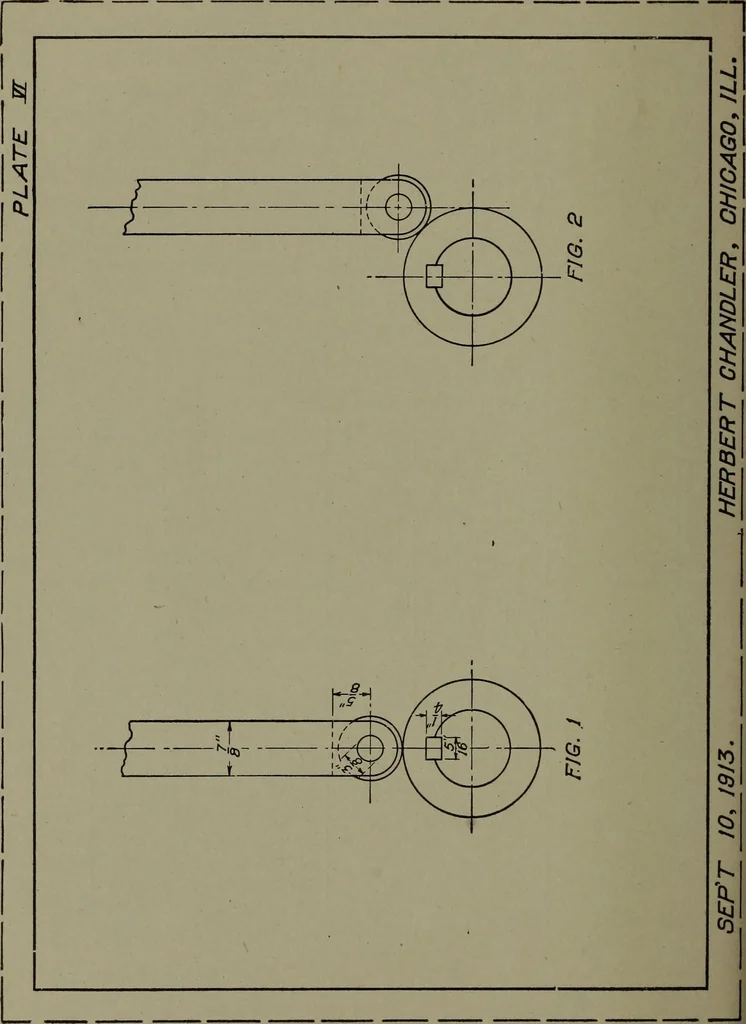

for thisInstruction Paper. The student should draw these plates and send them tothe School for correction and criticism. Reproduced plates of Nos. VIII, IX, and X, are not sent to the student;he should work out the problems for himself, following the directions given. The date, students name and… … Uie- PLA TE HI QUARTER-TURNBELT SCALE I-! TOP OF FLOOR
