Machine drawing, a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1920)
Griffin, Charles Lewis, 1867- [from old catalog], Adams, Charles Clyde, 1882- [from old catalog] joint author · Chicago, American technical society · leaf 193

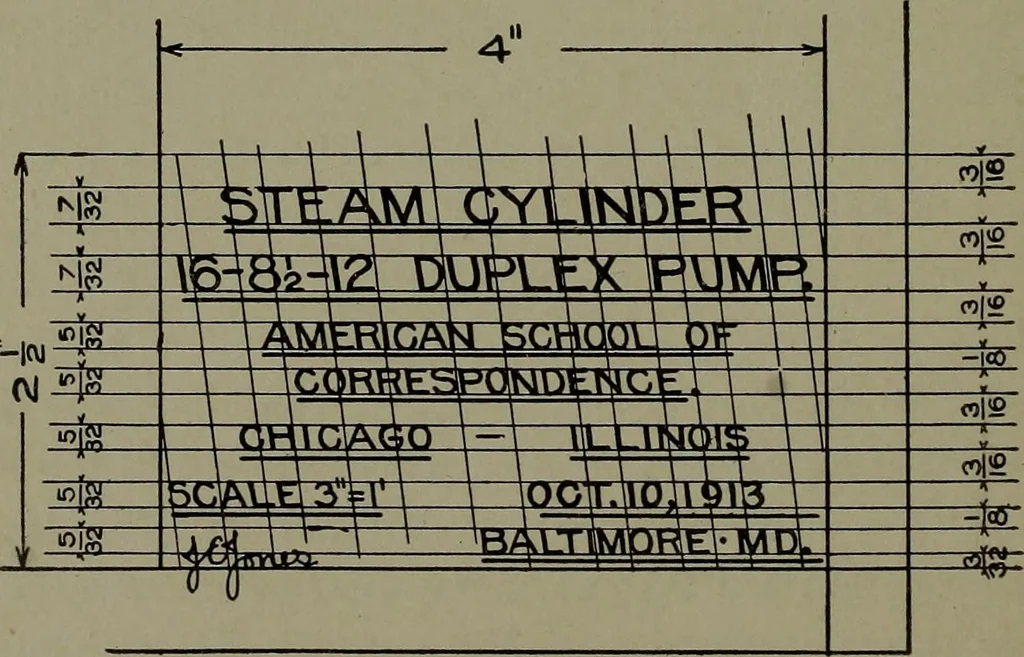

nd then followedexactly, without variation either as to location on sheet or detailmake-up. Abbreviated words are always permissible in titles,provided the meaning is clear. Special care must be taken inpunctuation, however, as a title, whether abbreviated or not, hasan unfinished appearance if the… … Fig. 123. Sample Plate Title Properly Drawn case the residence of the student draftsman has been substitutedfor the file number of the drawing. This style of title must be put with care on every drawing, MACHINE DRAWING 181 even on the rough pencil layouts. In the latter case it may ofcourse be…
Machinery
