Locomotive text for engineers and firemen; a complete treatise on the engine, electric head-light and standard code of train rules (1908)
National correspondence school of railroading, Chicago. [from old catalog] · [Chicago] · leaf 145

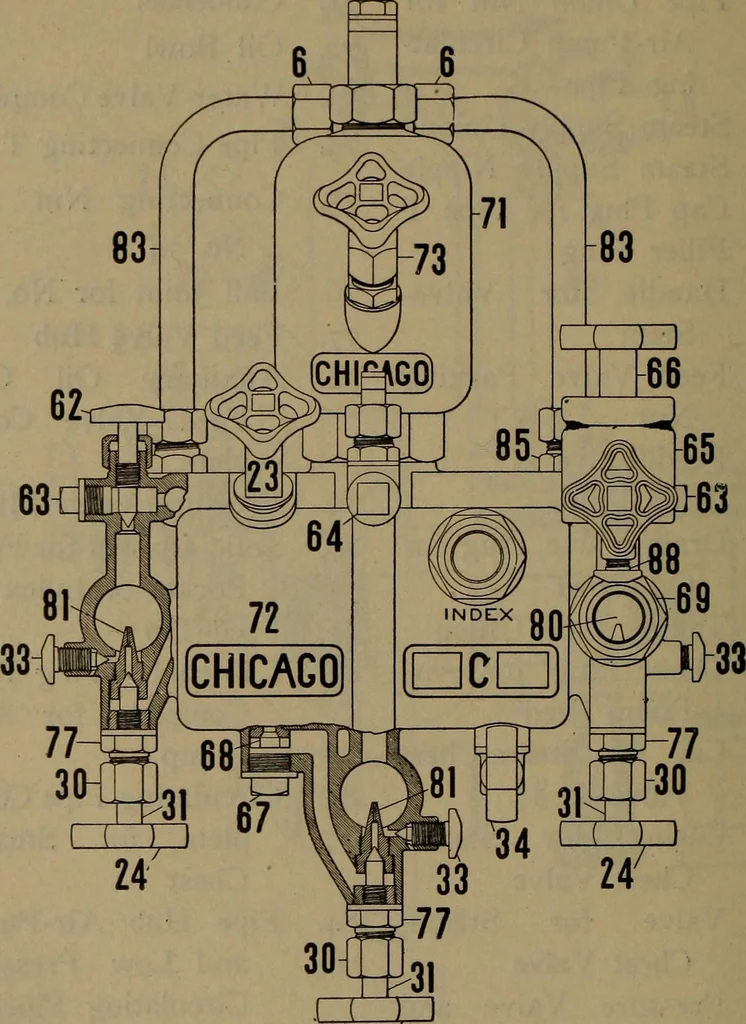

ir-Pump Feed Sup-ply Condenser Oil Bowl Water-Valve Complete Pipe Connecting T Connecting Nut forNo. 74 Ball Joint for No. 74 Feed Valve Hub Auxiliary Oil CupFeed Valve Com-plete Pressure Valve Hub Solid Glasses for FeedPocket or Index Feed Tip Circulating PipeComplete for Air-Pump Circulating Pipe… … FIG. 2—PLATE 35. Construction and Operation. Plate 35 shows twosectional views of the Chicago three-feed lubricatorBulls Eye type. The feeds are independent of eachother; any one of them may be shut off to renew gasketsor make other repairs without interfering with the otherfeeds, by closing…
Locomotives
