Rogers' drawing and design; an educational treatise relating to linear drawing; machine design; working drawings; transmission methods; steam, electrical and metal working machines and parts; lathes; boiler and parts; instruments and their use; tables, etc (1913)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 132

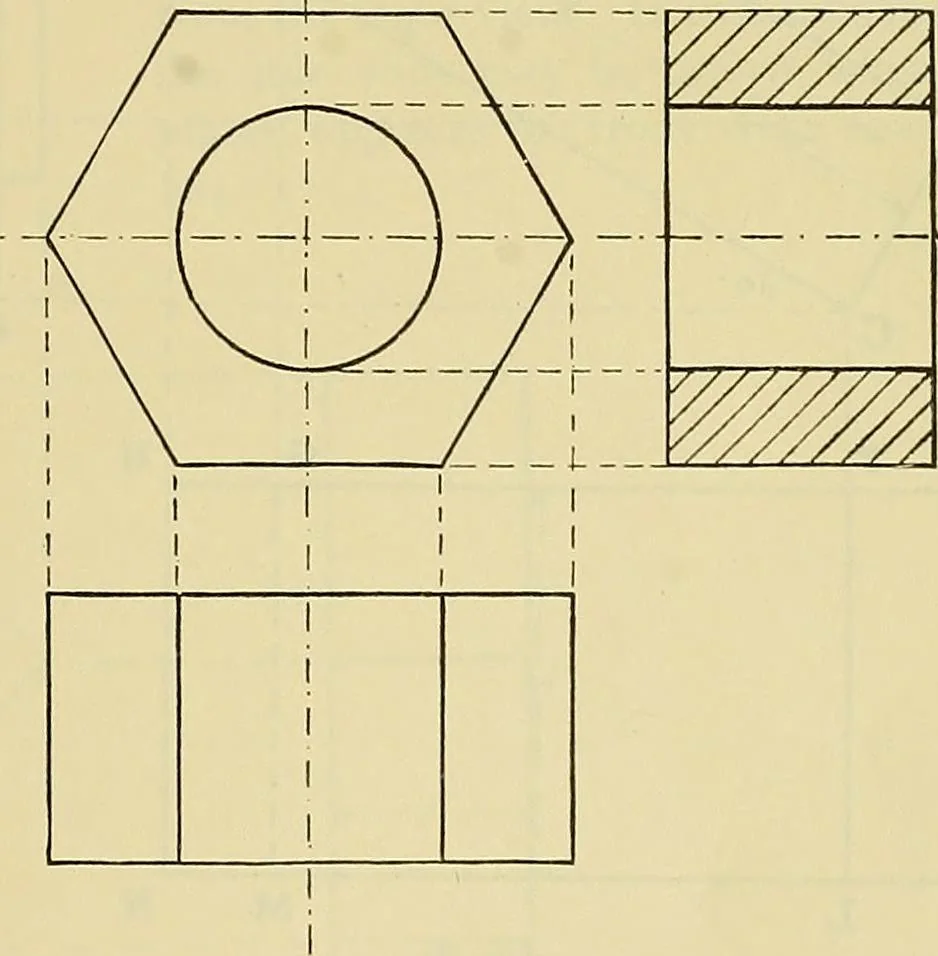

orizontal or vertical ; it is always desirableto select such a position for the object which is tobe drawn. Small parts of machinery, shown in detail draw-ings, are nearly always drawn in this manner. Itmay happen, however that some parts of a machinewill appear with their sides at different angles… … Fig. :X2. views will appear more complicated when the ob-ject is placed in an inclined position. The follow-ing exercises will show the objects drawn before,now placed at different angles. 148 ROGERS DRAWING AND DESIGN.
Mechanical drawing · Machine design
