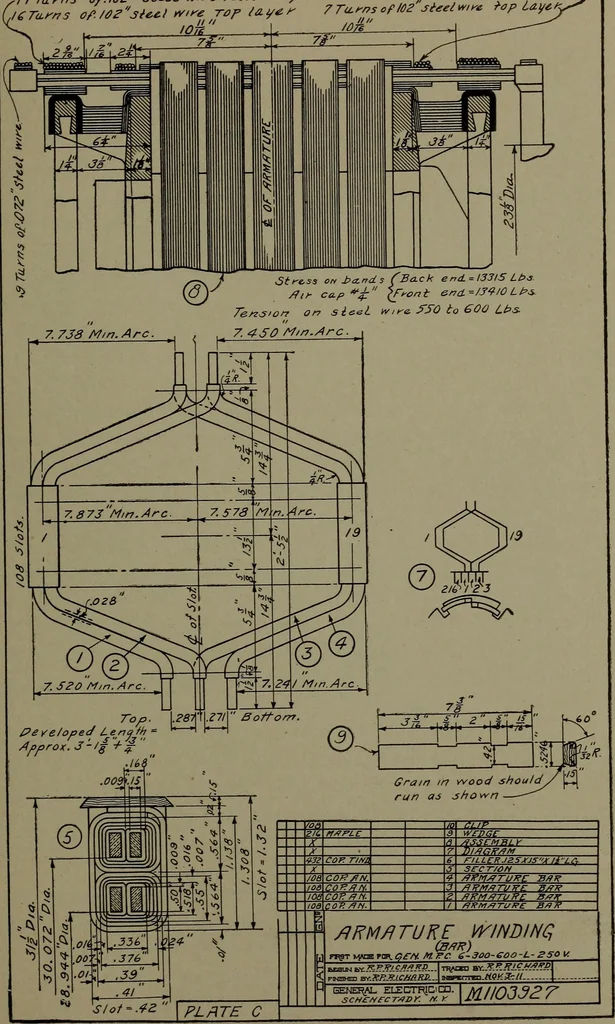

cale as will show all necessary detail, Figs. 1, 2, 3,and 4, putting on full and complete dimensions as obtained fromthe design data and the dimensions of the armature core, and asdetermined from the coils themselves. Cross Section of Coil in Slot. A cross section of one set ofconductors in one… … 228 MACHINE DRAWING be drawn to a very large scale, such as twice the size, in order thatall dimensions may be shown without sacrificing clearness. Inthis section it should be noted that several diametrical dimensionsare given and that the dimensions of the slot are shown along withthe…
