Machine drawing, a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1920)
Griffin, Charles Lewis, 1867- [from old catalog], Adams, Charles Clyde, 1882- [from old catalog] joint author · Chicago, American technical society · leaf 38

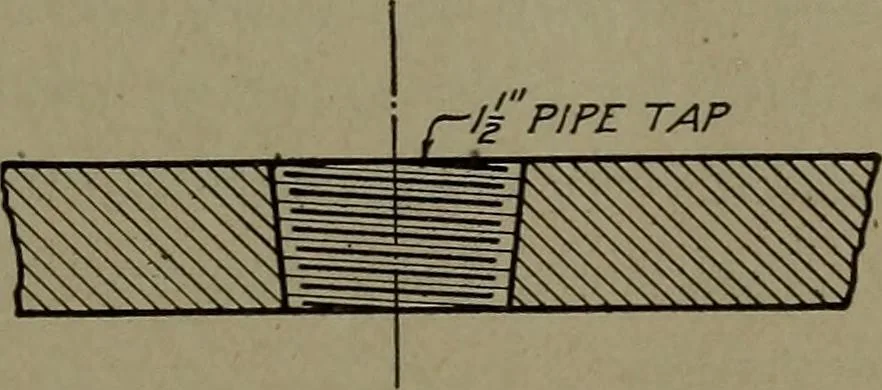

.27 .364 .494 .623 .824 1.048 1.38 1.611 2.067 OutsideDiameter .405 .54 .675 .84 1.05 1.315 1.66 1.90 2.375 Nominal Size 2y2 3 3^ 4 4^ 5 6 7 8 Actual InsideDiameter 2.468 3.067 3.548 4.026 4.508 5.045 6.065 7.023 .7.982 OutsideDiameter 2.875 3.50 4.00 4.50 5.00 5.563 6.625 7.625 8.625 TABLE… … holes decreases at the rate of f inch per foot. In representing a holewhich is threaded with a pipe tap, the hole is drawn of a diameterat its larger end about equal to the outside diameter of the pipewhich is to be screwed into it, andis drawn tapering. It is well to makethe taper considerably…
