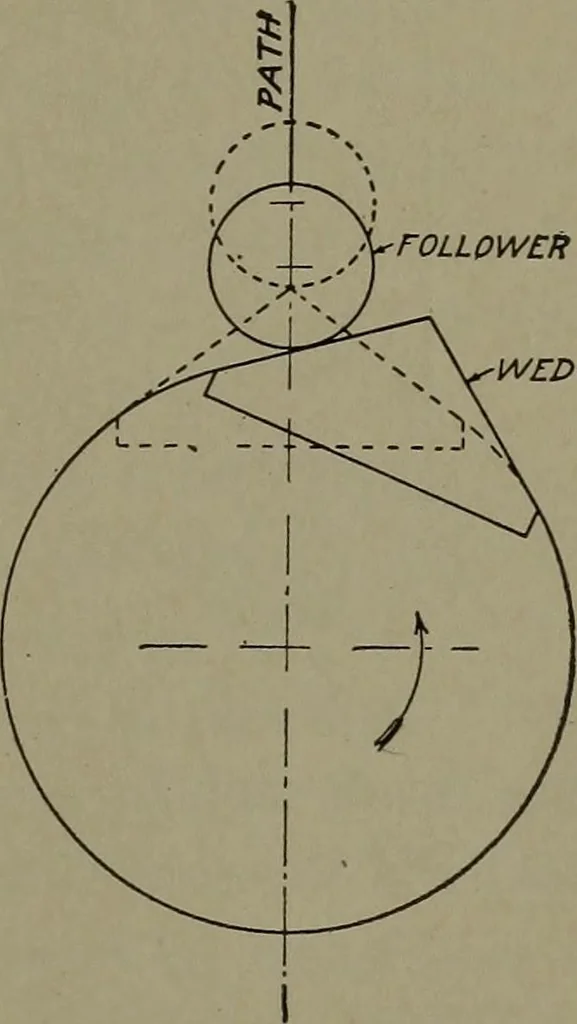

drive with difficulty, and may even lock the follower in its path, onaccount of excessive side pressure. This is a very important ele-ment in a design, and the analysis will be brought out more clearlyin the discussions of the line of pressure. The actual laying out of a cam is simple in principle,… … Fig. 7G. Simple Diagram of a Cam 84 MACHINE DRAWING
