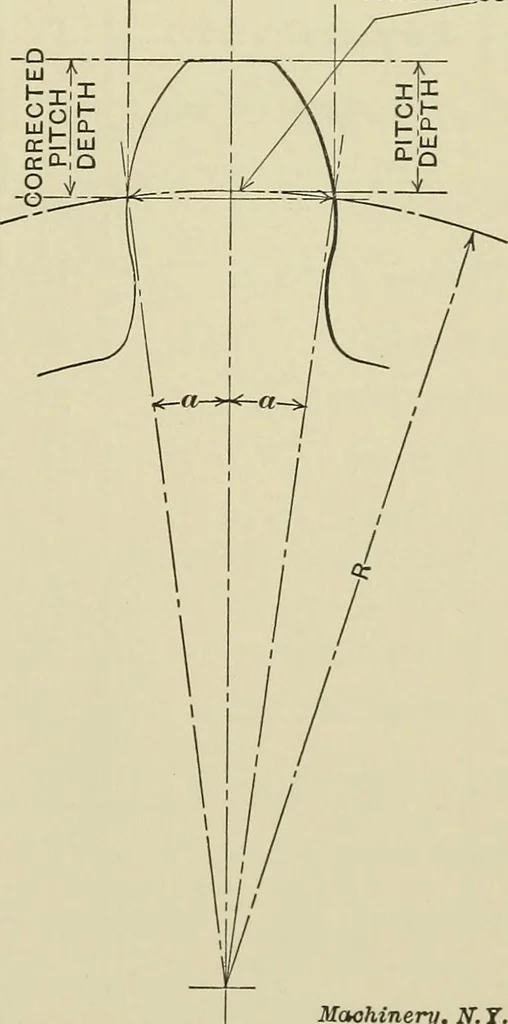

and0.3 for the gear tooth, for both14^- and 20-degree pressure angles. To find the circularthickness of the tooth at the pitch line at these depths, mul-tiply the circular pitch by 0.5659 for the pinion, and by 0.4341for the gear for i4j-degree pressure angle. For 20-degree pres-sure angle multiply… … Moichinery, N. Y. Fig. 2. Nomenclature of Gear Tooth 282 BEVEL GEARING Table m. Formulas for Long Addendum Bevel Gears Name Number of teeth Diametral pitch Circular pitch Pitch diameter in inches. Pitch angle Working depth Addendum Dedendum Clearance . Full depth One-half diameter incre-ment…
