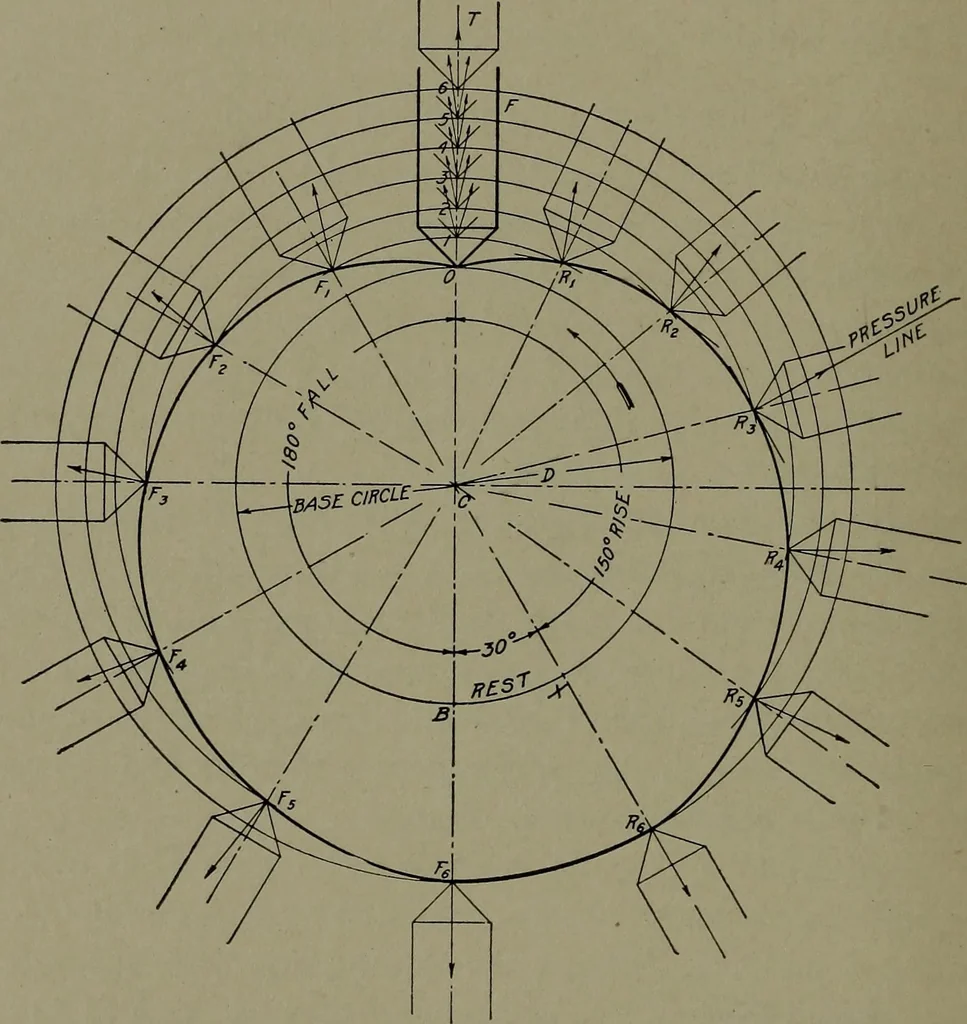

ollower at Rv Similarly, points R2, R3, Rv R&, 86 MACHINE DRAWING and jRg are found. As the follower rests from X to B, the arc ofintersection for Ra is continued to FR. For the period of fall, arcs 6 are swung from the same points of follower travel as before, making the intersections F5, Fv… … Fig. 79. Diagram for Cam with Pointed Follower Whose Path Intersects Cam Center a tangent line to the face of the follower. A pointed follower, asshown in the figure, is not a very practical form, as the point issubjected to severe wear. It is chosen for the present illustration,to afford the…
