Machine drawing; a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1914)
Griffin, Charles Lewis, 1867-, Adams, Charles Clyde, 1882- joint author · Chicago, American technical society · leaf 218

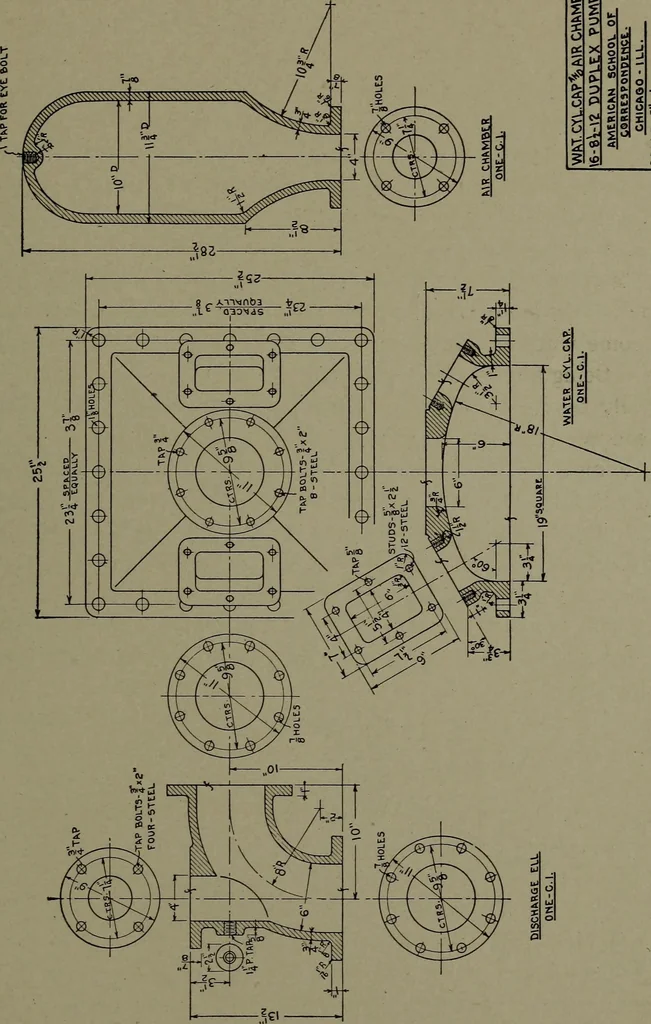

s is about as small as can be used, and thiscalls for a flange at least 7 inches X 9 inches. These are the pro-portions shown on the plate, and since the boss overhangs the boltsin the main-cap flange, it must be cut away underneath to clear thenuts. If three stud bolts are used on each side, this… … 206 MACHINE DRAWING as the end of the stud protrudes above the flange when the cap isbeing lowered into place. This is an awkward process, but it issometimes necessary. The discharge ell should have an easy bend; usually the radiusis somewhat more than the outside diameter of the pipe. It…
