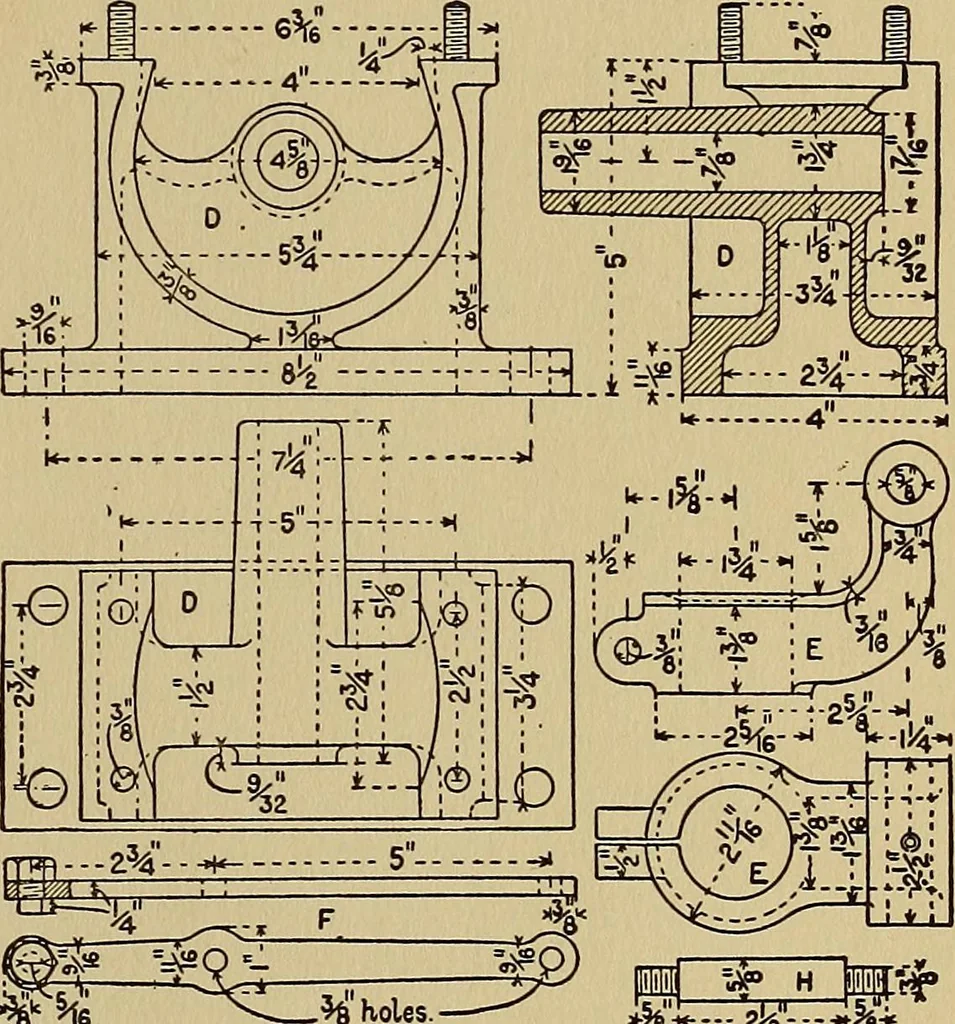

Pig. 183—Details of Governor. Example 19. Reversible Ratchet-drill. Draw, full size, the views shown in Fig, 178 of a rever-sible ratchet-brace. Draw also the details sep-arately, as shown in Fig. 179. All the dimensionsare to be obtained from the detailed drawings. … H^hi .^ holes ^ H ^Wf kJ^ Fig. 184—Details of Grovernor. Example 20. Steam Engine Grovemor. Draw the half elevation and half section of the governorcomplete, as shown in Fig. 180. Draw also a plan 96 MECHANICAL DRAWING and an elevation looking in the direction of tliearrow (a). Scale 6 inches to a…
