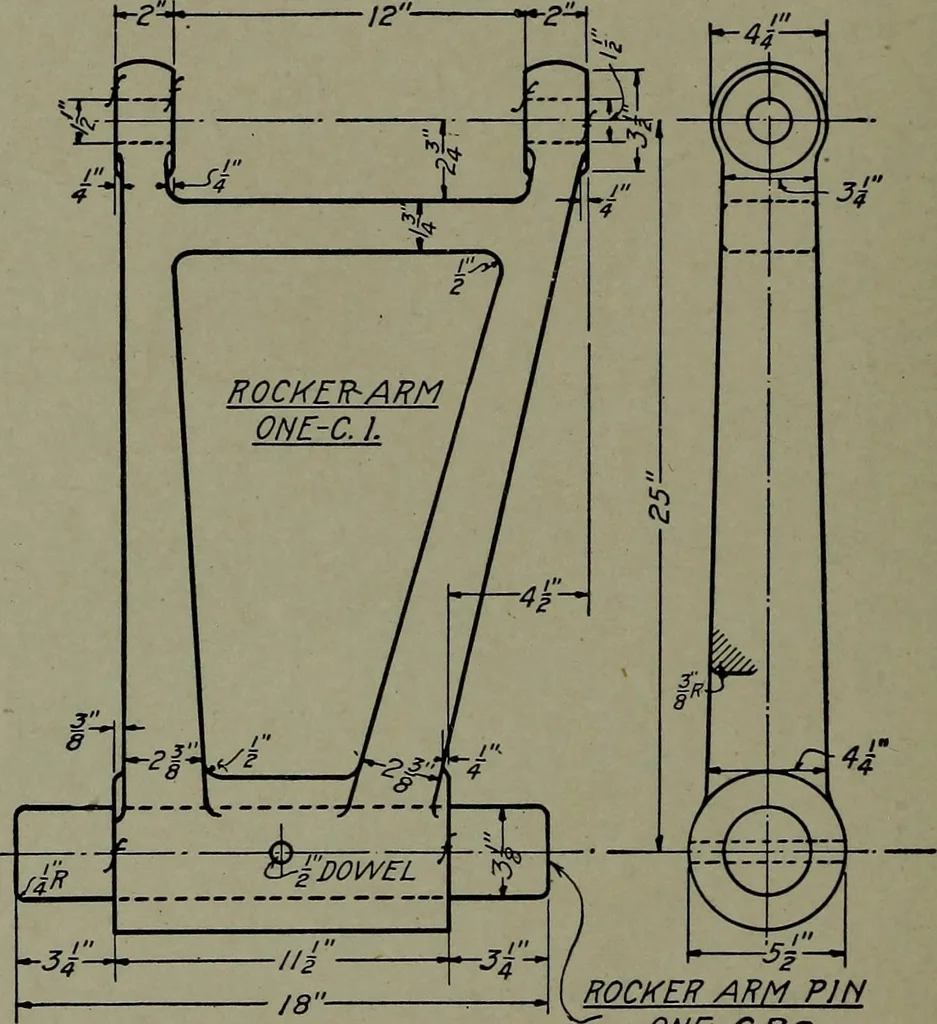

led drawing shouldbe so completely dimensioned that there will be no occasion for theworkman to make any calculations himself; for, even if he is com-petent to do it, the responsibility for the correctness of the figuresshould be on the draftsman. In practically all shops the workmenare not allowed… … ROCKER ARM PINONE- CMS. Fig. 34. Detail of Rocker Arm and Pin Rocker Arm and Pin. Fig. 34 shows the detail of a rocker armand pin, such as are frequently found in connection with the valvegear of a steam engine. This is a case where it is just as clear todetail two pieces together as to separate…
