Machine drawing, a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1920)
Griffin, Charles Lewis, 1867- [from old catalog], Adams, Charles Clyde, 1882- [from old catalog] joint author · Chicago, American technical society · leaf 51

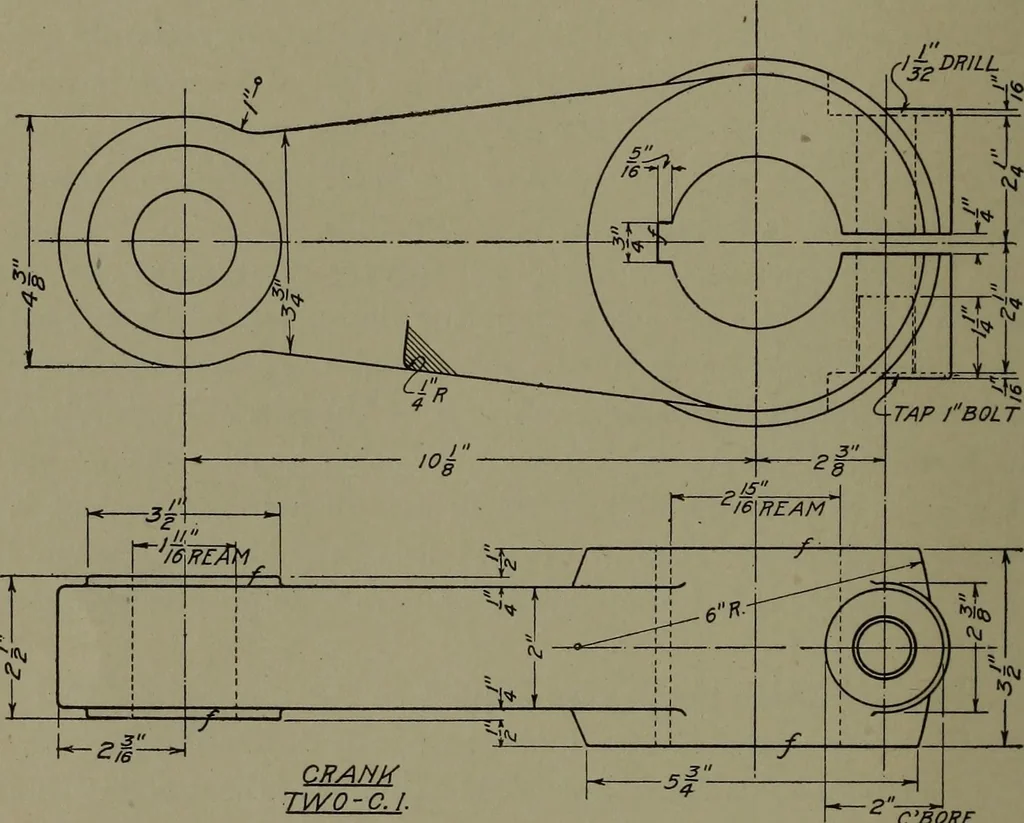

aker that he is to allowextra stock on the pattern, so that when the rough casting is madethere will be sufficient metal to enable the finishing cut to be takento the proper dimension. These finished surfaces are the mostimportant surfaces of the piece, to which all the other parts haveto be… … CBORE Fig. 32. Detail Drawing of Crank the figures that the machinist can readily work from one finishedsurface to another. In Fig. 32 the dimensions of the rough partsas given may not be exactly maintained in the casting, but thedistances between the finished surfaces must be exactly secured.The…
Machinery
