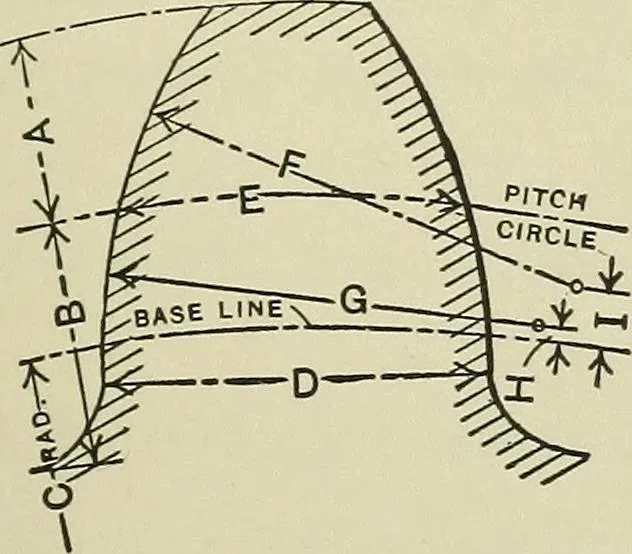

ing out special 22^-degree STUB-TOOTH GEARS 95 involute gears for rolling mill service. These teeth vary some-what from the standard shape, and liberal fillets are provided atthe root of the teeth to prevent breakage due to sharp corners atthese points. The dimensions given in the table are for… … Formulas: i4 =o.275Xcircular pitch;jB = 0.325Xcircular pitch;C= 0.462 Xpitch diameter;£ = 0,49Xcircular pitch;7^=0.251 Xpitch diameter;G=0.136Xpitch diameter;Pressure angle = 223^ degrees. No. ofTeeth 10II12131415161718 19 2021 Pitch Base Thick- Face Flank Dis- Dis- Radius, ness, Radius, Radius,…
