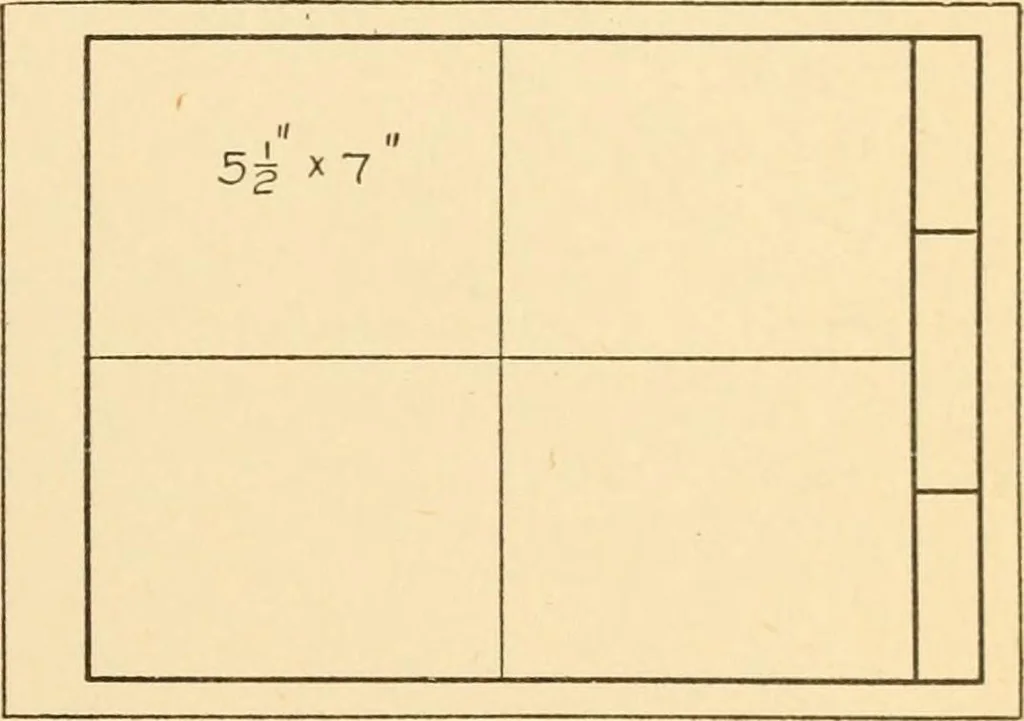

I E PiG. 235. Two Part and Four Part Layout. two sheets with trim lines only at the ends. An inspection of the problemwill indicate the proper space where it is not given in the statement ofthe problem. If a double size sheet is required the dimensions of Fig.236 may be used. 143 144 MACHINE…
