Shop sketching, a course of problems for mechanical drawing students (1919)
Windoes, Ralph Flagg, 1890- · Milwaukee, Wis., The Bruce publishing company · leaf 38

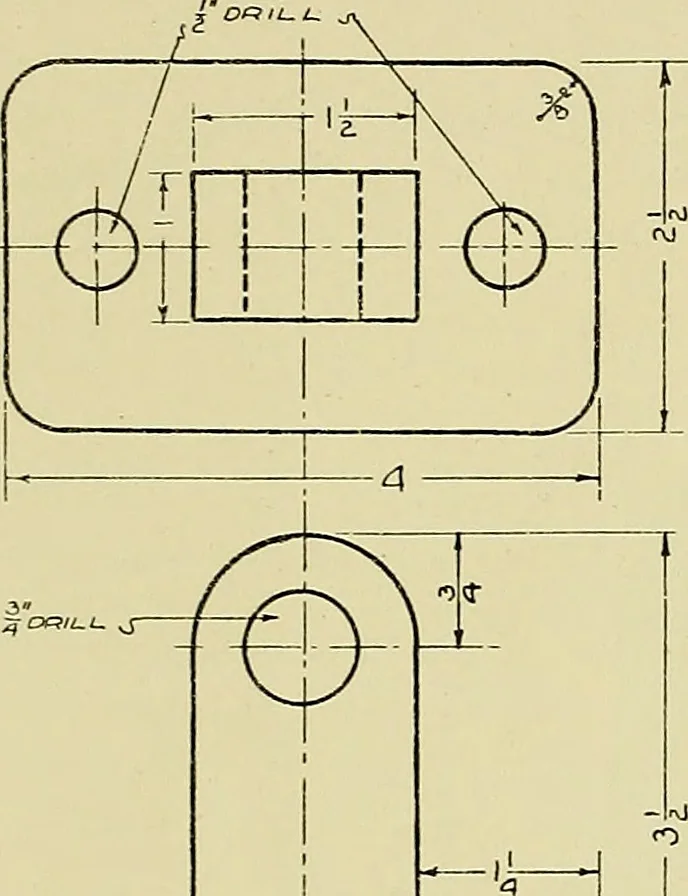

s caused by the foreshortening. Erase all construction cubes on the finished plate,leaving the three cylinders with the table line. Plate 10 This plate is an application of the principles holes are sometimes indicated with a note, which previously learned, the object being a small machinepart. The… … ! : ! SKETCH OF BR^CK^ T
