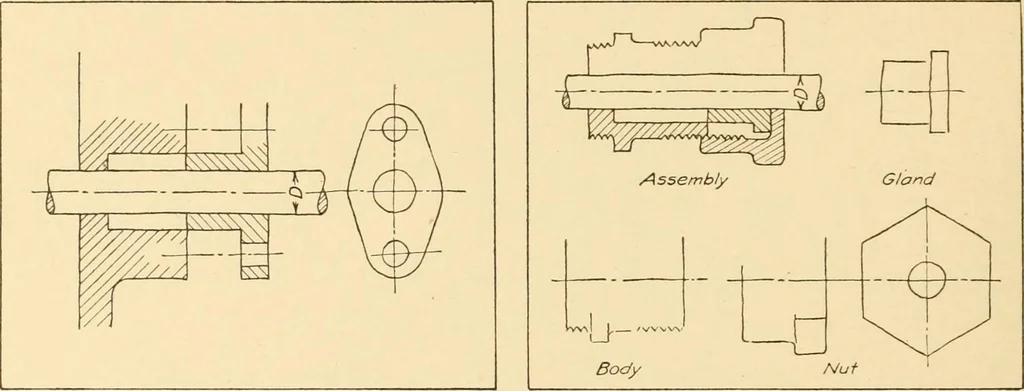

Fig. 281. Prob. 88. 169 170 MACHINE DRAWING PROB. 85.—Make a complete two view working drawing of a steam piston asdescribed for Prob. 86 but diameter of cylinder = 14 and piston rings Vs wide andV2 thick. Divide hollow part of piston into six equal sections. Refer to Chapter V. … Fig. 282. Prob. 89. Fig. 28.3. Prob. 90. PROB. 86.—Make a working drawing for an eccentric sheave and straps for thediameter of shaft specified by the instructor. Dimensions not given in table are to beworked out on your drawing. Suggestions for design are given in Fig. 280. Make asketch and submit…
